T5 wall

Stripe system wall light T5 normal

Fluorescent lamp

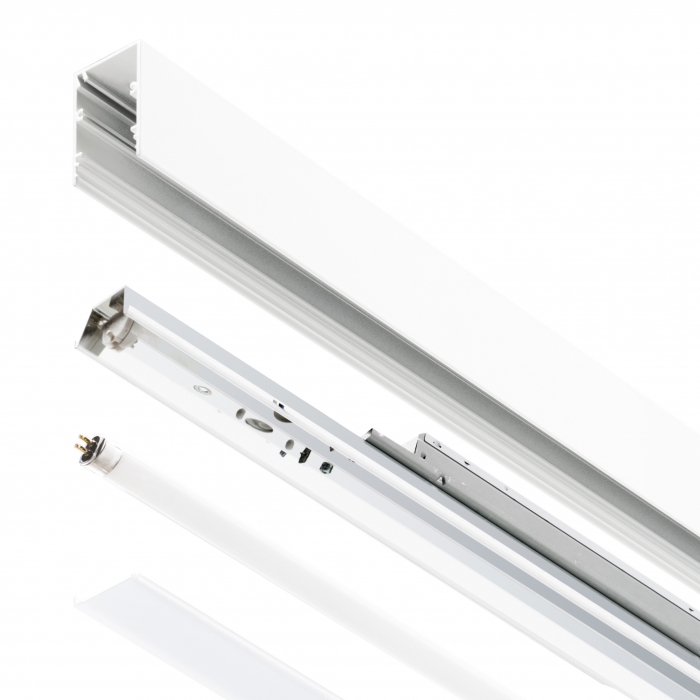

Wall mounting system made up of electrified modules, aluminium profiles designed for housing normal T5 lamps, and PMMA diffuser. Available in the following anodized aluminium colours natural satin aluminium, shiny chrome and brushed titanium and in the following painted versions: shiny white and matt black. The lighting bulbs are available in two versions:

- HE to maximize the luminous efficiency and get a constant luminance even by different elements with several lengths and powers.

- HO to obtain the maximum luminous flux.  The use of HO bulbs is advised for installation of several elements with the same power.



TECHNICAL DATA

SYMBOLS

PHOTOMETRIC CURVE

TS503 FA WALL,

1x14W G5 230Vac T5-HE

1350lm (1,7 cd/cmq) L:585mm

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

TS503 FB WALL,

1x24W G5 230Vac T5-HO

2000lm (2,5 cd/cmq) L:585mm

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

TS503 FC WALL,

1x21W G5 230Vac T5-HE

2100lm (1,7 cd/cmq) L:885mm

 Classe I Energy saving Protection index IP40 CE marking Inflammable surfaces (F)

TS503 FD WALL,

1x39W G5 230Vac T5-HO

3500lm (2,8 cd/cmq) L:885mm

 Classe I Energy saving Protection index IP40 CE marking Inflammable surfaces (F)

TS503 FE WALL,

1x28W G5 230Vac T5-HE

2900lm (1,7 cd/cmq) L:1185mm

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

TS503 FF WALL,

1x54W G5 230Vac T5-HO

5000lm (2,9 cd/cmq) L:1185mm

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

TS503 FG WALL,

1x35W G5 230Vac T5-HE

3650lm (1,7 cd/cmq) L:1485mm

 Classe I Energy saving Protection index IP40 CE marking Inflammable surfaces (F)

TS503 FH WALL,

1x49W G5 230Vac T5-HO

4900lm (2,3 cd/cmq) L:1485mm

 Classe I Energy saving Protection index IP40 CE marking Inflammable surfaces (F)

TS503 FI PARETE,

1x80W G5 230Vac T5-HO

7000lm (3,2 cd/cmq) L:1485mm

 Classe I Energy saving Protection index IP40 CE marking Inflammable surfaces (F)

TS503 FJ WALL,

2x28W G5 230Vac T5-HE

5800lm (1,7 cd/cmq) L:2370mm

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

TS503 FK WALL,

2x54W G5 230Vac T5-HO

10000lm (2,9 cd/cmq) L:2370mm

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

TS503 FL WALL,

2x35W G5 230Vac T5-HE

7300lm (1,7 cd/cmq) L:2970mm

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

TS503 FM WALL,

2x49W G5 230Vac T5-HO

9800lm (2,3 cd/cmq) L:2970mm

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

TS503 FN WALL,

2x80W G5 230Vac T5-HO

14000lm (3,2 cd/cmq) L:2970mm

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

COLORS

BOX:
ral customization

ACCESSORIES / COMPONENTS

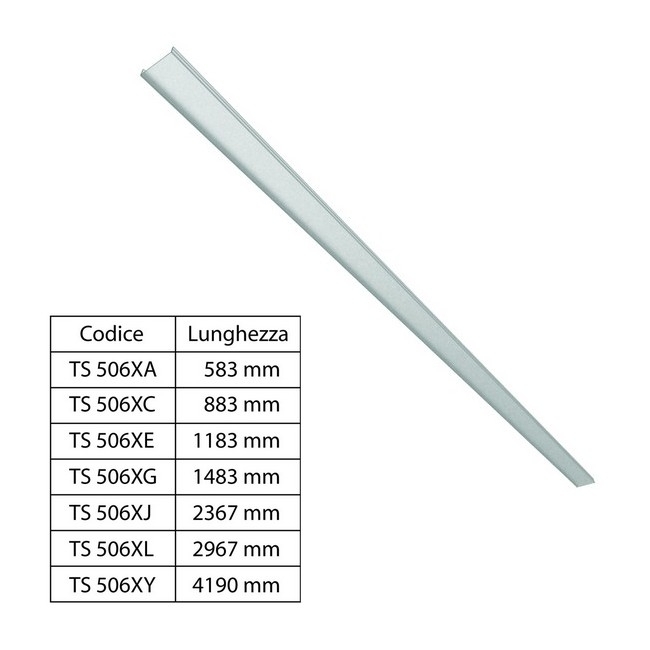

diffuser

Diffuser

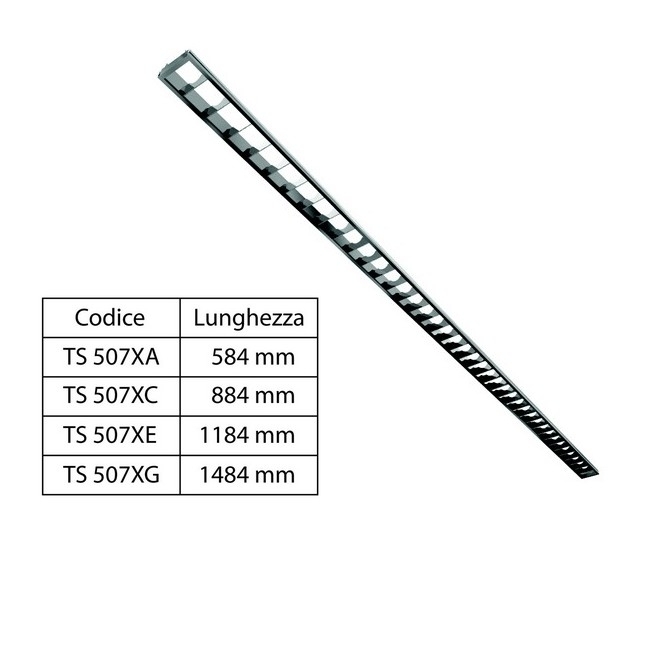

darklight

Darklight screen

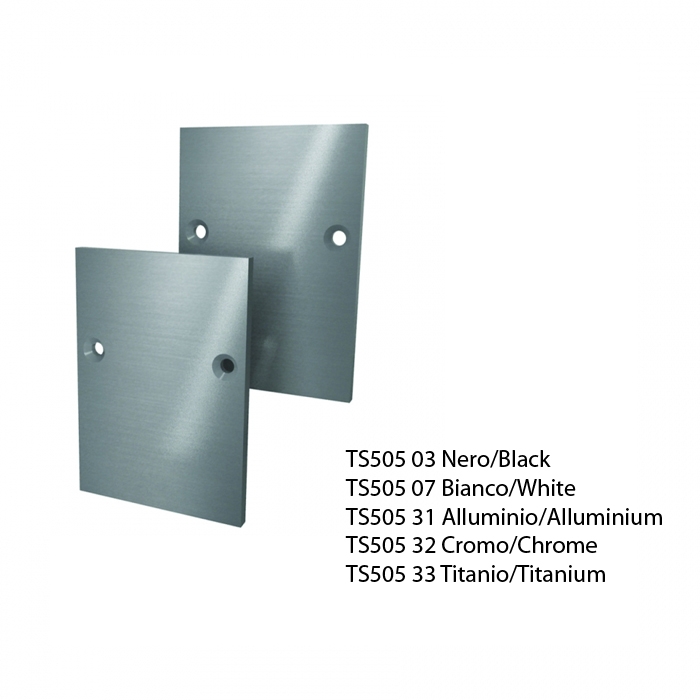

End caps kit without edges (2pcs)

End caps kit with edges (2pcs.)

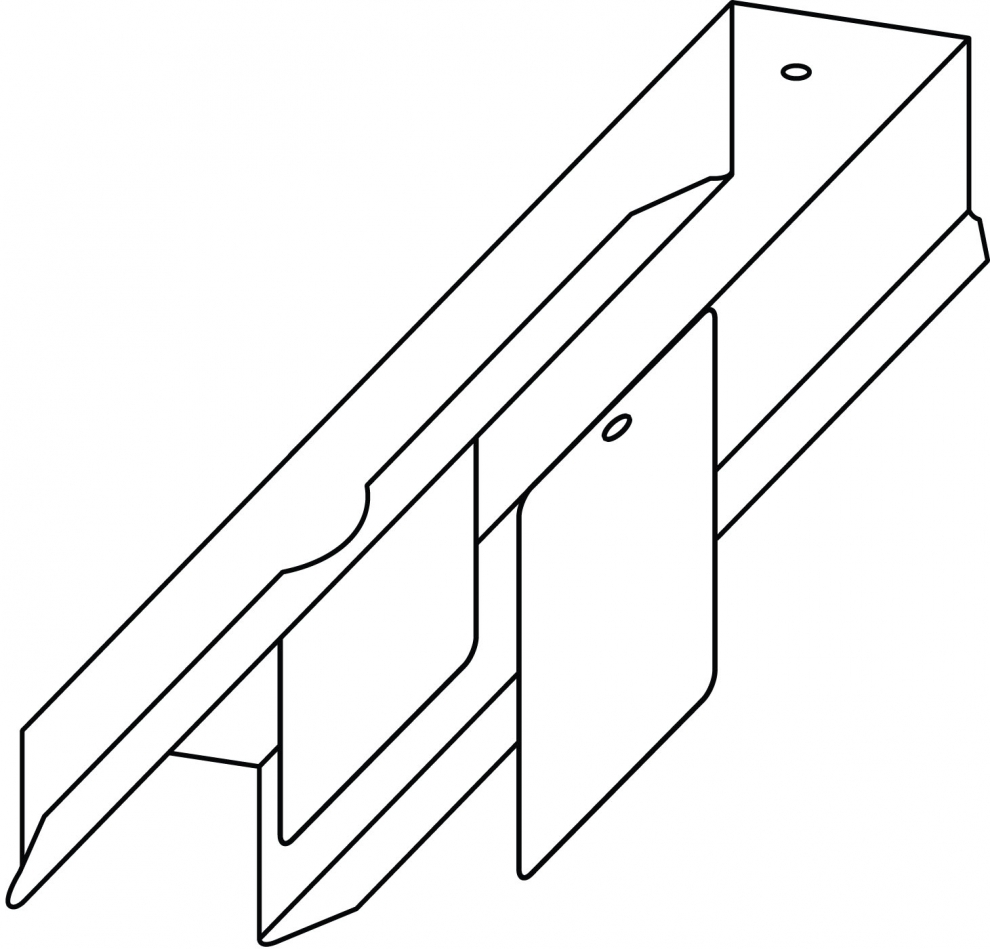

metal junction bar for wall

TS 513
Metal junction bar for wall
emergency kit

emergency kit (see electrical connection)
dimmable kit

dimmable kit (see electrical connection)

DOCUMENTATION

Technical Drawing

Assembly Instructions

Data Sheet

Electrical Assembly Instructions
