Narrow profileIP40High output

Stripe GO frameless T5

Fluorescent lamp

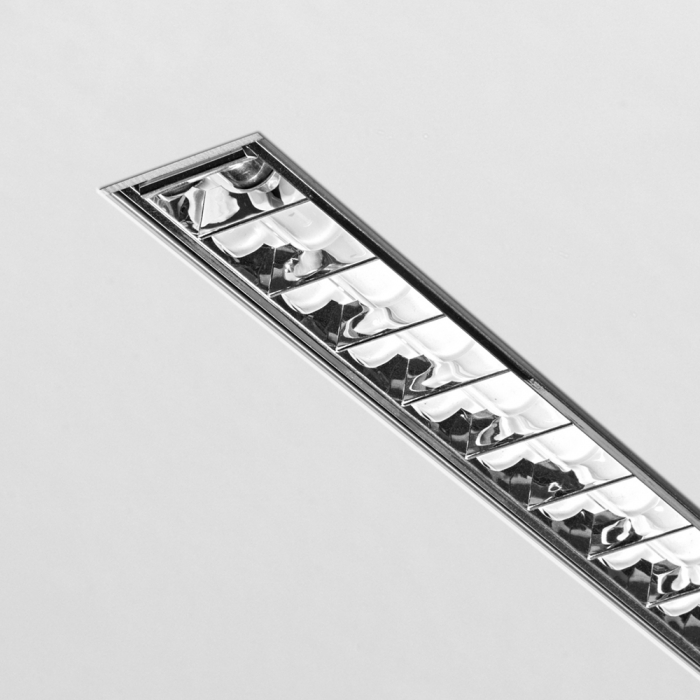

Recessed frameless lamp made up of an electrified single element, aluminium profile designed for housing normal T5 lamps, and complete with end caps and PMMA diffuser or darklight screen.

Available in the brushed natural aluminium and shiny white finishings.

The T5 lamps are available in two versions:

-      HE to maximize the luminous efficiency and get a constant luminance even by different elements with several lengths and powers.

-      HO to obtain the maximum luminous flux.  The use of HO lamps is advised for installation of several elements with the same power.



TECHNICAL DATA

SYMBOLS

PHOTOMETRIC CURVE

T526 FA A (diffuser) RECESSED 1x14W G5 T5-HE L1 591

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

T526 FA B (darklight) RECESSED 1x14W G5 T5-HE L1 591

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

T526 FB A RECESSED (diffuser) 1x24W G5 T5-HO L1 591

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

T526 FB B (darklight) RECESSED  1x24W G5 T5-HO L1 591

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

T526 FC A (diffuser) INCASSO 1x21W G5 T5-HE L1 891

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

T526 FC B (darklight) RECESSED 1x21W G5 T5-HE L1 891

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

T526 FD A (diffuser) RECESSED 1x39W G5 T5-HE L1 891

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

T526 FD B (darklight) RECESSED 1x39W G5 T5-HE L1 891

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

T526 FE A (diffuser)  RECESSED 1x28W G5 T5-HE L1 1191

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

T526 FE B (darklight)  RECESSED 1x28W G5 T5-HE L1 1191

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

T526 FF A (diffuser) RECESSED 1x54W G5 T5-HO L1 1191

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

T526 FF B (diffuser) RECESSED 1x54W G5 T5-HO L1 1191

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

T526 FG A (diffuser) RECESSED 1x35W G5 T5-HE L1 1491

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

T526 FG B (darklight) RECESSED 1x35W G5 T5-HE L1 1491

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

T526 FH A (diffuser) RECESSED 1x49W G5 T5-HO L1 1491

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

T526 FH B (darklight) RECESSED 1x49W G5 T5-HO L11491

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

T526 FI A (diffuser) RECESSED 1x80W G5 T5-HO L1 1491

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

T526 FI B (darklight) RECESSED 1x80W G5 T5-HO L1 1491

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

T526 FJ A (diffuser) RECESSED 2x28W G5 T5-HE L1 2376

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

T526 FJ B (darklight) RECESSED 2x28W G5 T5-HE L1 2376

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

T526 FK A (diffuser) RECESSED 2x54W G5 T5-HO L1 2376

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

T526 FK B (darklight) RECESSED 2x54W G5 T5-HO L1 2376

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

T526 FL A (diffuser) RECESSED 2x35W G5 T5-HE L1 2976

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

T526 FL B (darklight) RECESSED 2x35W G5 T5-HE L1 2976

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

T526 FM A (diffuser) RECESSED 2x49W G5 T5-HO L1 2976

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

T526 FM B (darklight) RECESSED 2x49W G5 T5-HO L1 2976

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

T526 FN A (diffuser) RECESSED 2x80W G5 T5-HO L1 2976

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

T526 FN B (darklight) RECESSED 2x80W G5 T5-HO L1 2976

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

COLORS

BOX:
ral customization

ACCESSORIES / COMPONENTS
emergency kit

emergency kit (see electrical connection)
dimmable kit

dimmable kit (see electrical connection)

DOCUMENTATION

Technical Drawing

Assembly Instructions

Data Sheet

Electrical Assembly Instructions
