Diapar frameless

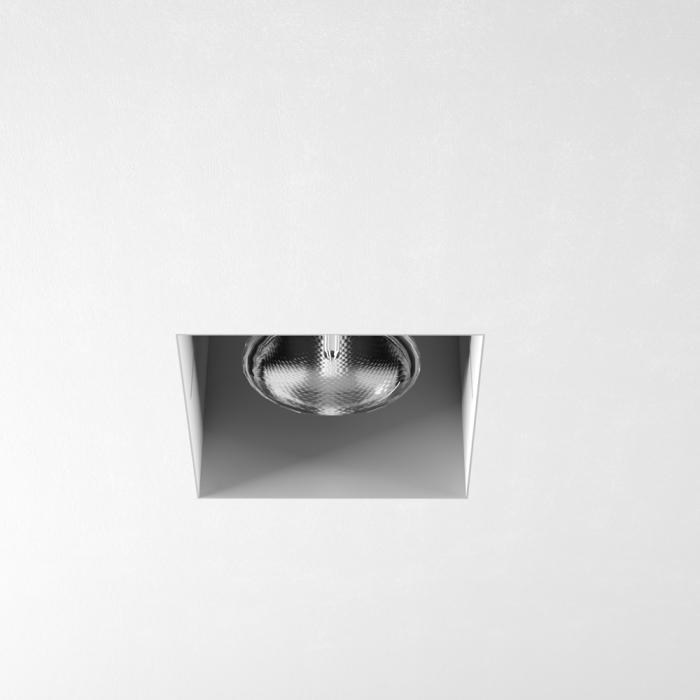

Diapar Hit frameless recessed light

Recessed light

Recessed light fitti ng without frame with direct light forceilings with E27 light bulbs. Available in metal painted entirely white, black, grey. The article is provided with a Plaster Kit enabbing a total recessed installation in the plasterboard or brick wall.



TECHNICAL DATA

SYMBOLS

PHOTOMETRIC CURVE

T033 AA RECESSED MAX 1X70W

E27 HI-PAR 30* (for plasterboard)

T043 AA RECESSED MAX 1x70W

E27 HI-PAR 30* (for brick wall)

 LED READY LED INSIDE Classe I

COLORS

BOX:
ral customization

NOTES

Power supply not included





ACCESSORIES / COMPONENTS

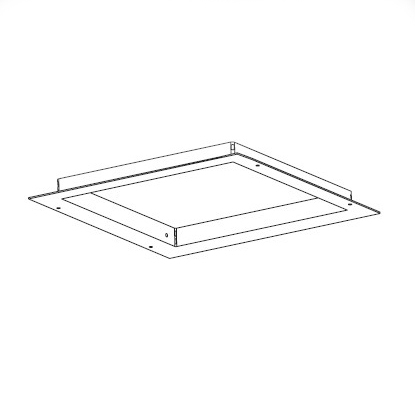

Plasterkit frame for plasterboard included

Plasterkit frame for plasterboard or brick wall included
driver image

Power supply for metal halide 70W (see electrical connection)

DOCUMENTATION

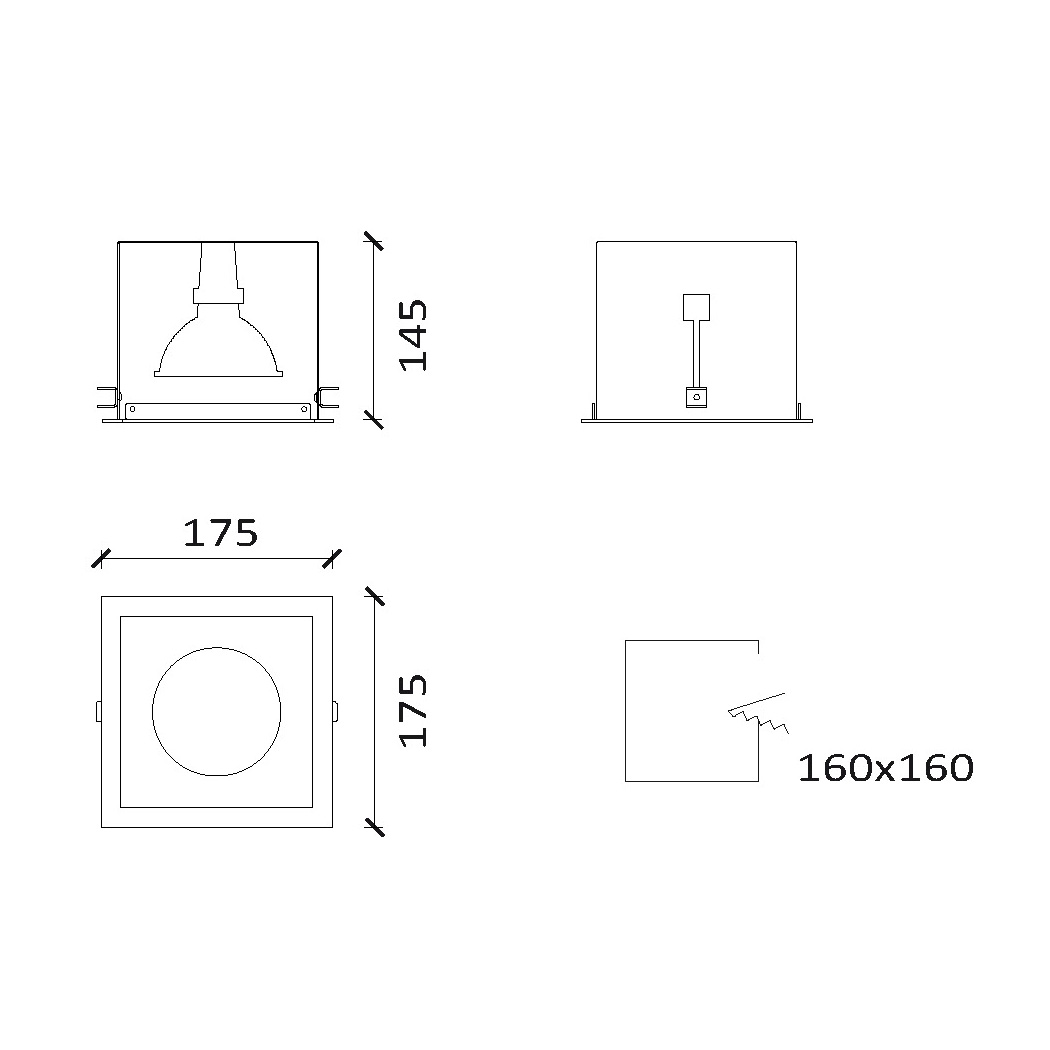

Technical Drawing

Assembly Instructions

Data Sheet

Electrical Assembly Instructions
