RGB

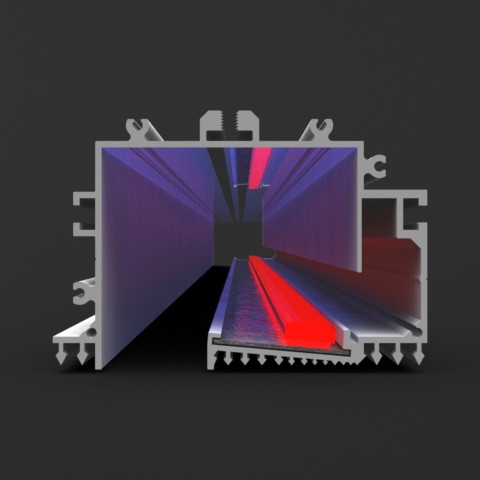

Blade 1 Strip RGB

Led system

Aluminium profile by meter white painted, electrified with an IP20 led strip (14,4 W/m), 10cm pitch. IP65 on request.
For the control of RGB colour and scenarios, the installation of the dimmer “3 channels” with the possibility of integration with RF remote control or DMX-512 with home & building automation systems is recommended. Opportunity to plan scenarios using  the control unit OT DALI by Osram.



TECHNICAL DATA

SYMBOLS

PHOTOMETRIC CURVE

TS 604 LZ 01 RECESSED 1x STRIP LED RGB IP20

 Classe III Energy saving Protection index IP20 Led CE marking Inflammable surfaces (F)

TS 604 LA 01 STARTING KIT 1 STRIP RGB IP20

 Classe III Energy saving Protection index IP20 Led CE marking Inflammable surfaces (F)

COLORS

BOX:

NOTES

ACCESSORIES / COMPONENTS

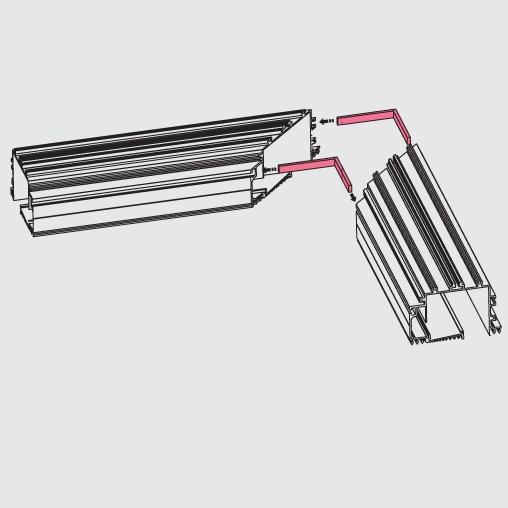

GIUNZIONI

driver

DOCUMENTATION

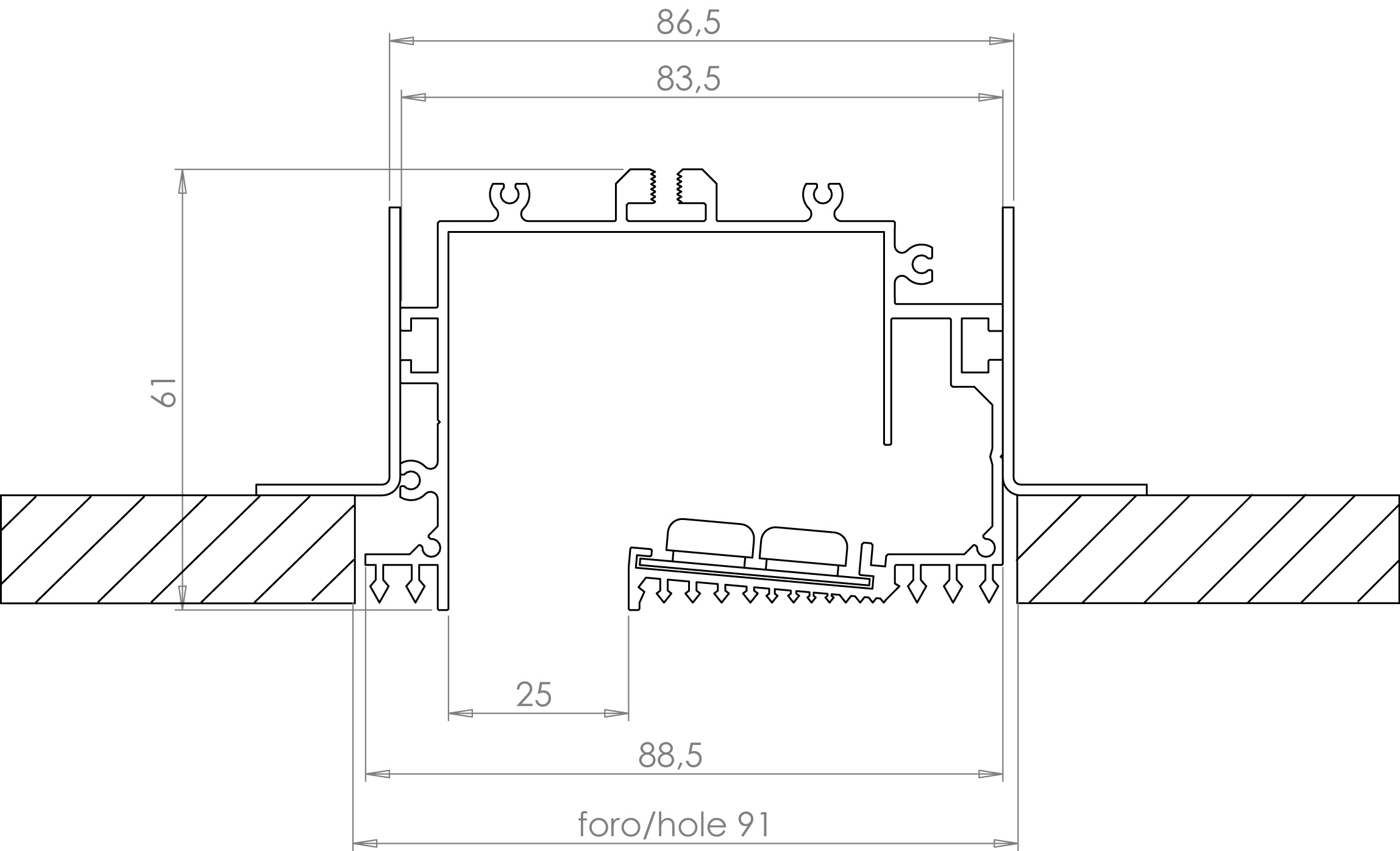

Technical Drawing

Assembly Instructions

Data Sheet

Electrical Assembly Instructions
