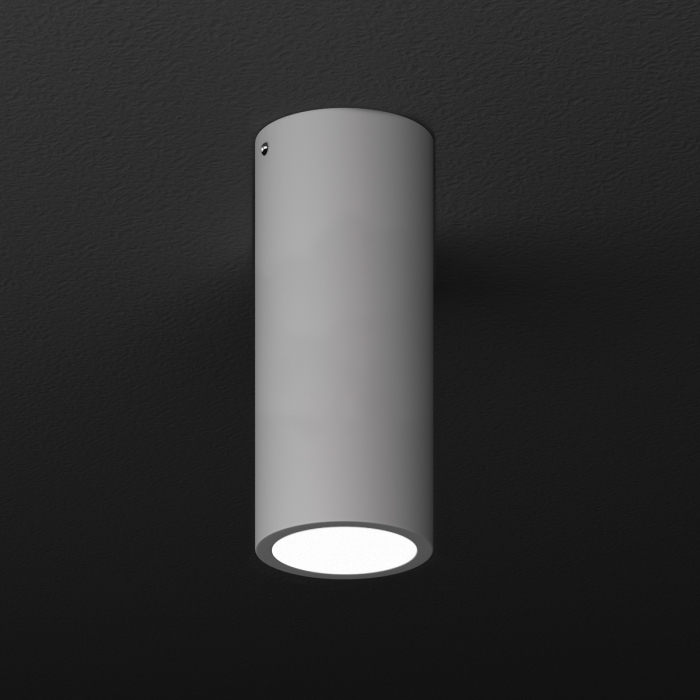

Ulisse G ceiling LED lamp

Ulisse G ceiling lamp with lens

Ceiling LED lamp

Ceiling LED fitting for indoor, minimalist design with 120 round section tube. Available in metal painted white, black, grey and in polished or brushed chrome. On request for contract supplies, special finishings can be customized.

Appliance available with LED modules, driver included, 230Vac and 27° lens (2100 lm luminous flux).

Transparent glass is available as accessory.

Available in two different colour temperatures: 3000K and 4000K.



TECHNICAL DATA

SYMBOLS

PHOTOMETRIC CURVE

T009 LE K3

3 x LED module 3 CREE XT-E 25W 230Vac,

with lens 27°, 3000K, 1750lm

700mA power supply included



T009 LE K4

3 x LED module 3 CREE XT-E 25W 230Vac,

with lens 27°, 4000K, 2100lm

700mA power supply included

 LED INSIDE Classe I Energy saving Protection index IP20 Led CE marking Inflammable surfaces (F)

COLORS

BOX:

ACCESSORIES / COMPONENTS
Trasparent glass

TA00260

DOCUMENTATION

Technical Drawing

Assembly Instructions

Data Sheet

Electrical Assembly Instructions
