Quba Alo

Up-down lightNarrow-wide beamUp-down light

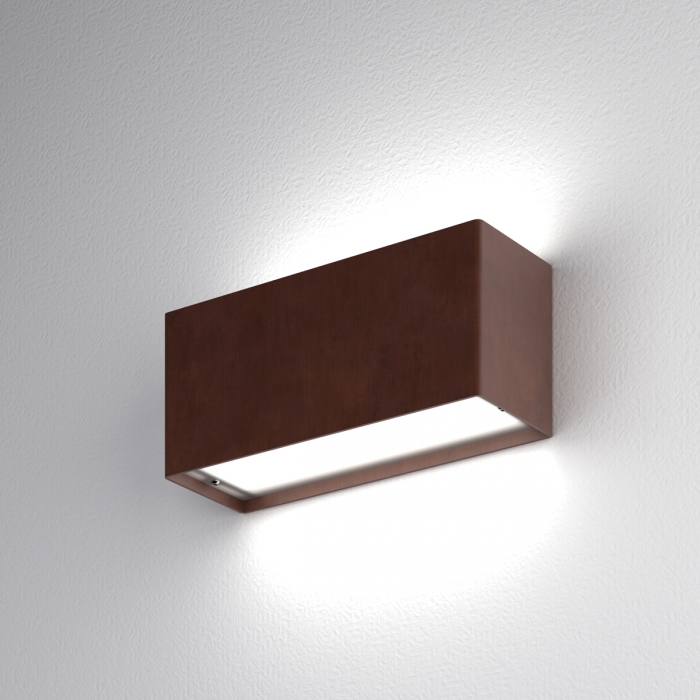

Quba alo 23 wall lamp

Wall lamp for interiors

Wall lamp for interior in metal painted entirely white, black, grey and in polished or brushed chrome and in a particular finish “corten effect”. It uses linear halogen lamps with R7s bulbs (75 mm) with different accessories in order to achieve effects of indirect diffused light or direct light.



TECHNICAL DATA

SYMBOLS

PHOTOMETRIC CURVE

T002 AA WALL Max 1x100W R7s (75 mm)

 Classe I Eco Protection index IP20 CE marking Inflammable surfaces (F)

COLORS

BOX:
ral customization

NOTES

Accessories required (not optional)

ACCESSORIES / COMPONENTS

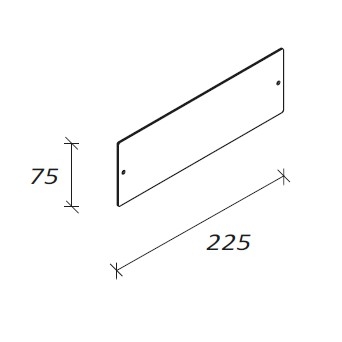

Full plate

TA009
Full plate

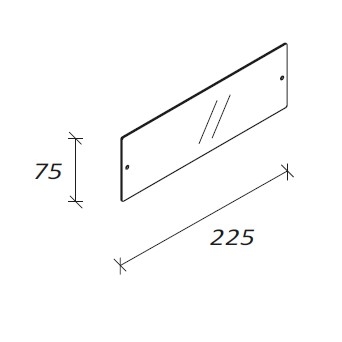

Sandblasted glass

TA005
Sandblasted glass

DOCUMENTATION

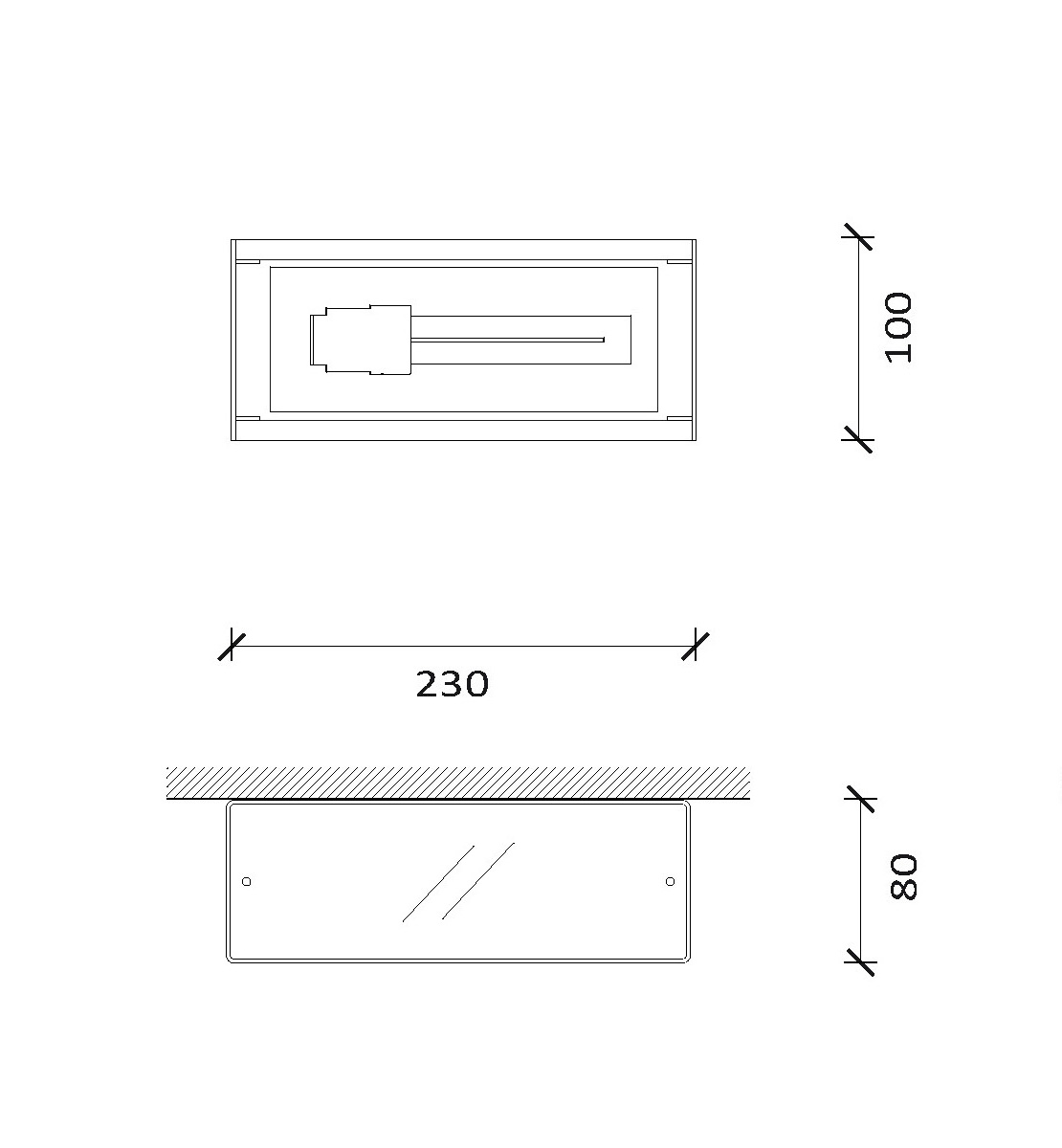

Technical Drawing

Assembly Instructions

Data Sheet
