Punto indoor recessed light

Punto recessed light

Recessed LED light

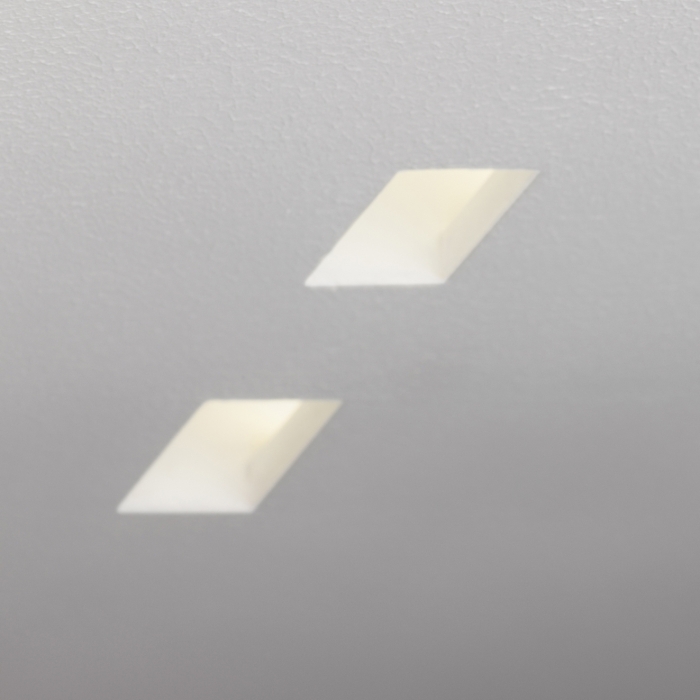

Frameless recessed LED spotlight for indirect and diffused light, both for ceiling and wall, in metal painted entirely matt white. Length 60mm (void 25mm).

The unit is equipped with a two LED module with a luminous flux above 200 lumen.

It is available in two colour temperatures: 3000K and 4000K.

Particularly suitable also as element for architectural compositions with Blade system.

For plasterboard or brick wall without the use of a recessed box.



TECHNICAL DATA

SYMBOLS

PHOTOMETRIC CURVE

T061 LB K3 RECESSED LIGHT 90°,

LED module 2 CREE / SEOUL 2,6W 24Vdc,

3000K, 200lm



T061 LB K4 RECESSED LIGHT 90°,

LED module 2 CREE / SEOUL 2,6W 24Vdc,

4000K, 220lm

 LED INSIDE Classe III Energy saving Protection index IP20 Led CE marking Inflammable surfaces (F)

COLORS

BOX:

ACCESSORIES / COMPONENTS
Punto indoor recessed light

TE036
Driver 24Vcc 20W
Punto indoor recessed light

TE037
Driver 24Vdc 35W
Punto indoor recessed light

TE038
Driver 24Vcc 60W

Punto indoor recessed light

TE039
Driver 24Vdc 100W
Punto indoor recessed light

TE040

DOCUMENTATION

Technical Drawing

Data Sheet

Electrical Assembly Instructions
