Round 15

Round 15

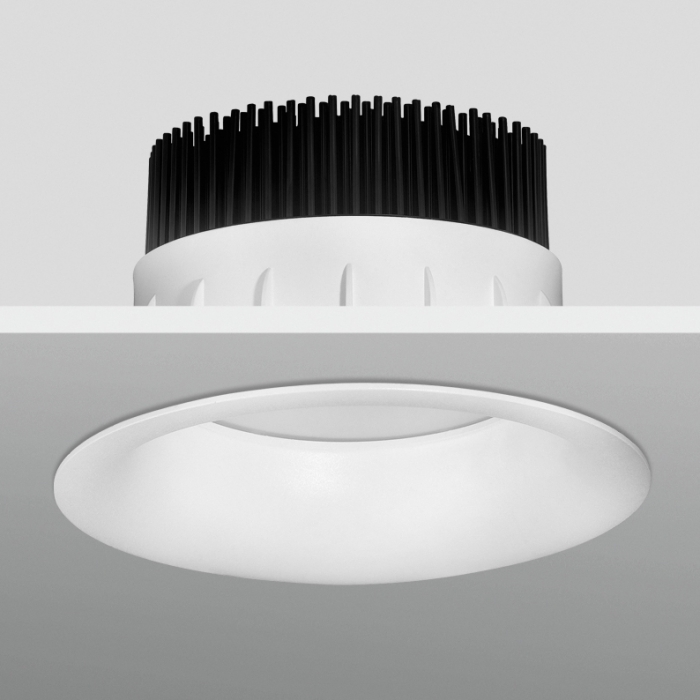

Recessed LED lamp

Range of re-entrant recessed LED fixtures for direct diffused light. Structure made in aluminum entirely white painted. Frosted acrylic diffuser included for a widespread light effect. Suitable for ceiling applications in the plasterboard. Available with diam.150mm 15W



TECHNICAL DATA

SYMBOLS

PHOTOMETRIC CURVE

T050 LB K3 RECESSED 90°,

LED module 15W 230Vac,

with frosted glass, 3000K, 1050lm



T050 LB K4 RECESSED 90°,

LED module 15W 230Vac,

with frosted glass, 4000K, 1150lm

 LED INSIDE Classe II Energy saving Protection index IP20 Led CE marking Inflammable surfaces (F)

COLORS

BOX:

DOCUMENTATION

Technical Drawing

Assembly Instructions

Data Sheet
