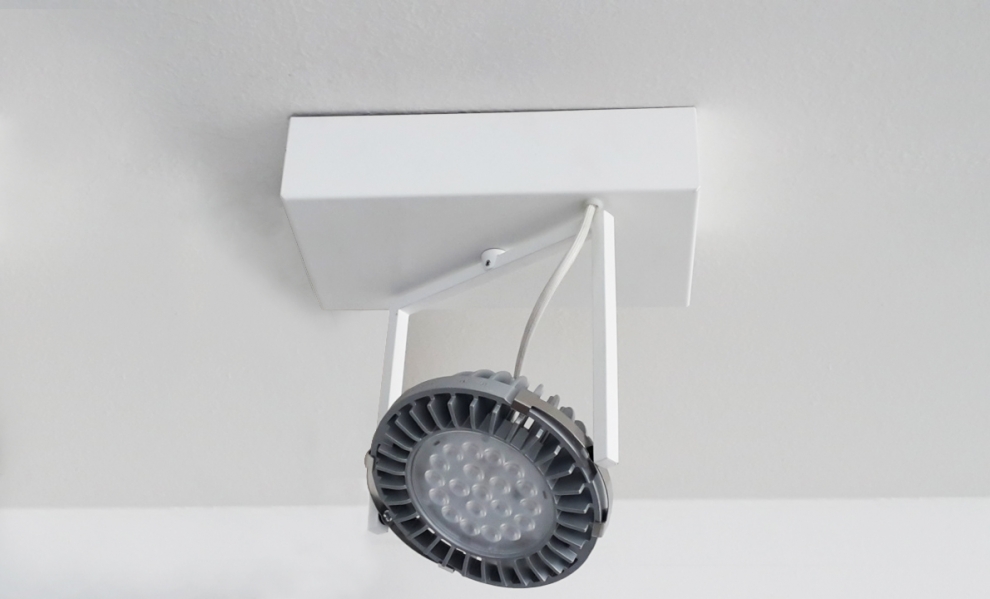

Diapson LED 1 L COINLIGHT

Diapson COINLIGHT 1 L

LED light fitting for indoor, with 1 lights independently adjustable, in polished steel and chrome finish or matt white painted. The appliance is provided with LED COINLIGHT lamp (by Osram) and its proper power supply. This is an alternative solution to metal halide CDM-R111 version with the following advantages: energy saving, higher luminous flux, higher color rendering index, lower maintenance costs and immediate switch-on of the lamp. Perfect customized solution for accents lighting thanks to the directional light beams. Suitable for installation both on wall and ceiling.



TECHNICAL DATA

SYMBOLS

PHOTOMETRIC CURVE

T020 LA (color) M K3 wall/ceiling,

LED LAMP COINLIGHT 1x22,5W (26W*),

Lens 24°, 3000K, 1740lm x 1 (7705 cd)

700mA power supply included



T020 LA (color) M K4 wall/ceiling,

LED LAMP COINLIGHT 1x22,5W (26W*),

Lens 24°, 4000K, 1850lm x 1 (8155 cd)

700mA power supply included



T020 LG (color) M K3 wall/ceiling,

LED LAMP COINLIGHT 1x33,8W (39W),

Lens 24°, 3000K, 2550lm x 1 (11230 cd)

1050mA power supply included



T020 LG (color) M K4 wall/ceiling,

LED LAMP COINLIGHT 1x33,8W (39W),

Lens 24°, 4000K, 2700lm x 1 (11885 cd)

1050mA power supply included

 LED INSIDE Classe I Energy saving Protection index IP23 Led CE marking Inflammable surfaces (F)

T020 LA (color) W K3 WALL/CEILING,

LED LAMP COINLIGHT 1x22,5W (26W*),

Lens 40°, 3000K, 1740lm x 1 (3570 cd)

700mA power supply included



T020 LA (color) W K4 WALL/CEILING,

LED LAMP COINLIGHT 1x22,5W (26W*),

Lens 40°, 4000K, 1850lm x 1 (3780 cd)

700mA power supply included



T020 LG (color) W K3 WALL/CEILING,

LED LAMP COINLIGHT 1x33,8W (39W*),

Lens 40°, 3000K, 2550lm x 1 (5200 cd)

1050mA power supply included



T020 LG (color) W K4 WALL/CEILING,

LED LAMP COINLIGHT 1x33,8W (39W*),

Lens 40°, 4000K, 2700lm x 1 (5505 cd)

1050mA power supply included

 LED INSIDE Classe I Energy saving Protection index IP23 Led CE marking Inflammable surfaces (F)

COLORS

BOX:

NOTES

* Total absorded power by the lighting fixture

ACCESSORIES / COMPONENTS

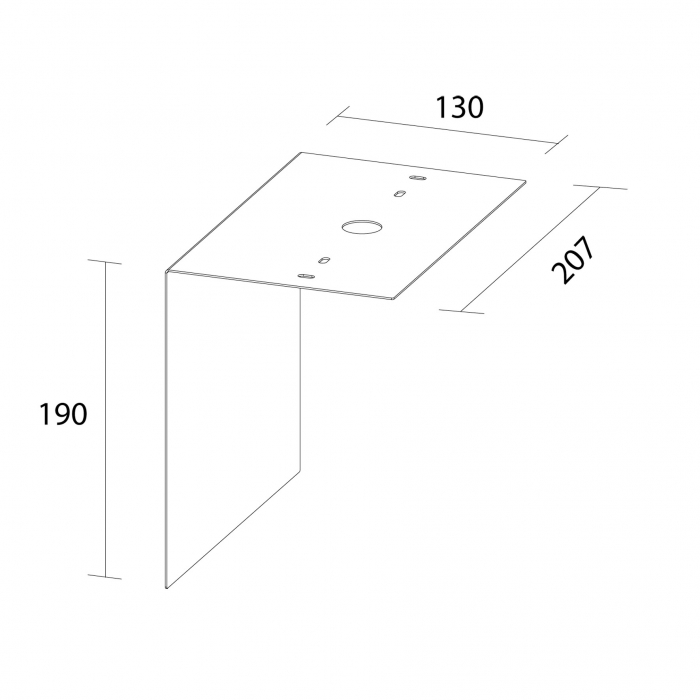

1_LUCE

TA025 01
Kit screen

DOCUMENTATION

Technical Drawing

Assembly Instructions

Data Sheet
