t5 suspension

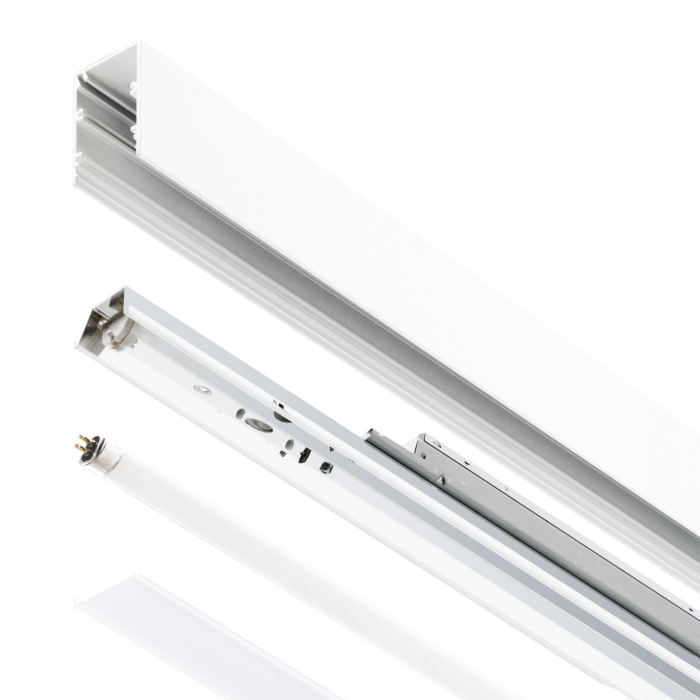

Stripe system suspension T5 normal

mono-emission lamp

Suspension system made up of electrified modules, aluminium profiles designed for housing T5 lamps, and PMMA diffuser or darklight screen.

Available in the following anodized aluminium colours natural satin aluminium, shiny chrome and brushed titanium and in the following painted versions: shiny white and matt black.

The lighting bulbs are available in two version:

HE to maximize the luminous efficiency and get a costant luminance even by different elements with several lenghts and power

HO to obtain the maximun luminous flux. The use of HO bulbs is advised for installation of several elements with the same power









TECHNICAL DATA

SYMBOLS

PHOTOMETRIC CURVE

TS509 FA SUSPENSION,

1x14W G5 230Vac T5-HE

1350lm (1,7 cd/cmq) L:585mm

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

TS509 FB SUSPENSION,

1x24W G5 230Vac T5-HO

2000lm (2,5 cd/cmq) L:585mm

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

TS509 FC SUSPENSION,

1x21W G5 230Vac T5-HE

2100lm (1,7 cd/cmq) L:885mm

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

TS509 FD SUSPENSION,

1x39W G5 230Vac T5-HO

3500lm (2,8 cd/cmq) L:885mm

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

TS509 FE SUSPENSION,

1x28W G5 230Vac T5-HE

2900lm (1,7 cd/cmq) L:1185mm

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

TS509 FF SUSPENSION,

1x54W G5 230Vac T5-HO

5000lm (2,9 cd/cmq) L:1185mm

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

TS509 FG SUSPENSION,

1x35W G5 230Vac T5-HE

3650lm (1,7 cd/cmq) L:1485mm

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

TS509 FH SUSPENSION,

1x49W G5 230Vac T5-HO

4900lm (2,3 cd/cmq) L:1485mm

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

TS509 FI SUSPENSION,

1x80W G5 230Vac T5-HO

7000lm (3,2 cd/cmq) L:1485mm

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

TS509 FJ SUSPENSION,

2x28W G5 230Vac T5-HE

5800lm (1,7 cd/cmq) L:2370mm

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

TS509 FK SUSPENSION,

2x54W G5 230Vac T5-HO

10000lm (2,9 cd/cmq) L:2370mm

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

TS509 FL SUSPENSION,

2x35W G5 230Vac T5-HE

7300lm (1,7 cd/cmq) L:2970mm

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

TS509 FM SUSPENSION,

2x49W G5 230Vac T5-HO

9800lm (2,3 cd/cmq) L:2970mm

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

TS509 FN SUSPENSION,

2x80W G5 230Vac T5-HO

14000lm (3,2 cd/cmq) L:2970mm

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

COLORS

BOX:

ACCESSORIES / COMPONENTS

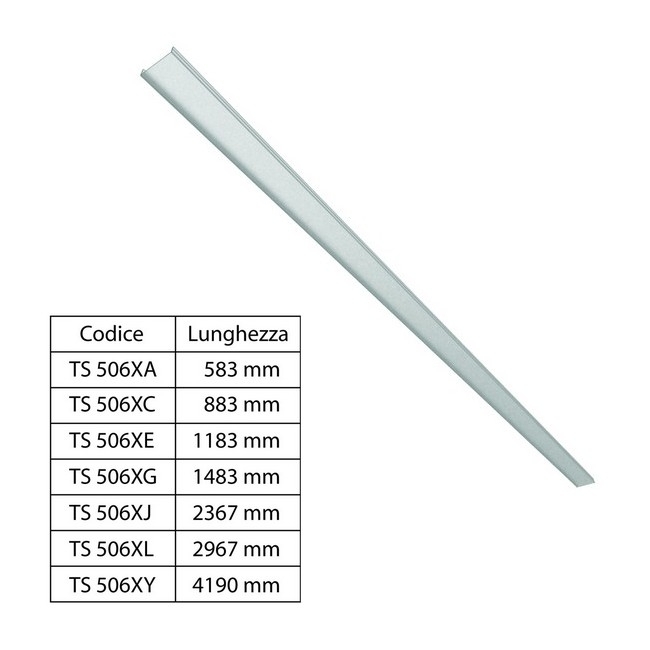

diffuser

diffuser

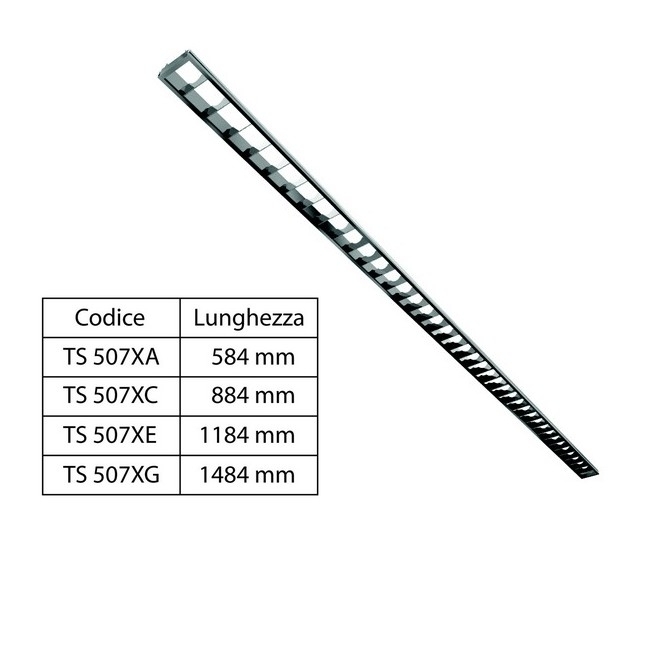

darklight

Darklight screen

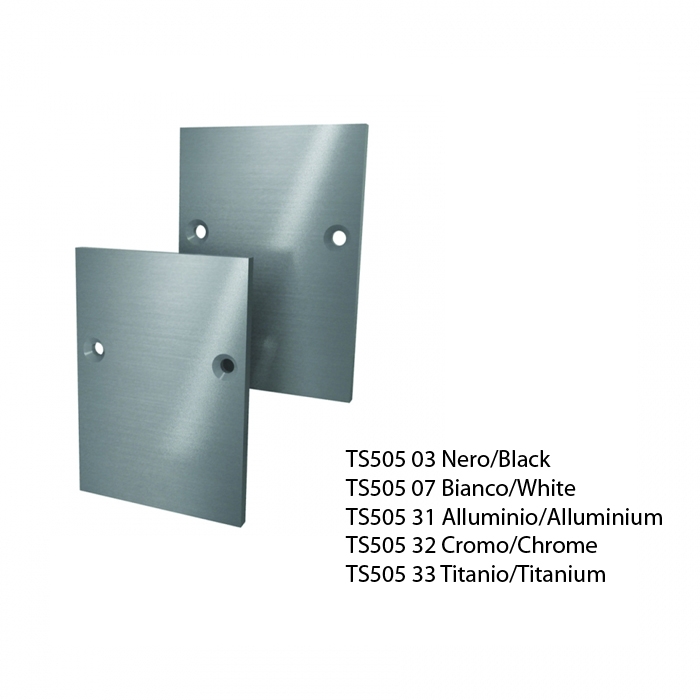

End caps kit without edges (2pcs)

End caps kit without edges (2pcs.)

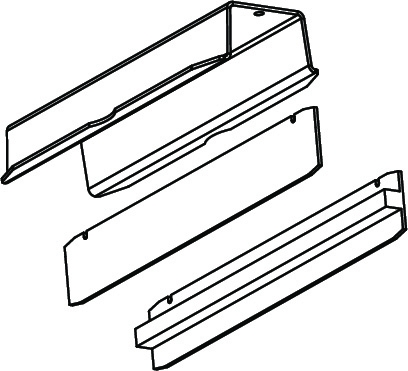

STAFFA GIUNZIONE

TS509
Metal junction bar for suspension

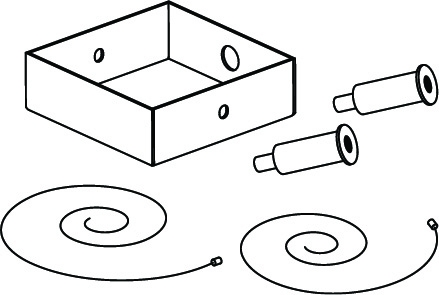

cup photo

TS519 04
Ceiling cup kit with stainless steel cables
emergency kit

emergency kit (see electrical connection)

emergency kit

dimmable kit (see electrical connection)
