Diapson Track

Diapson track

Track projectors

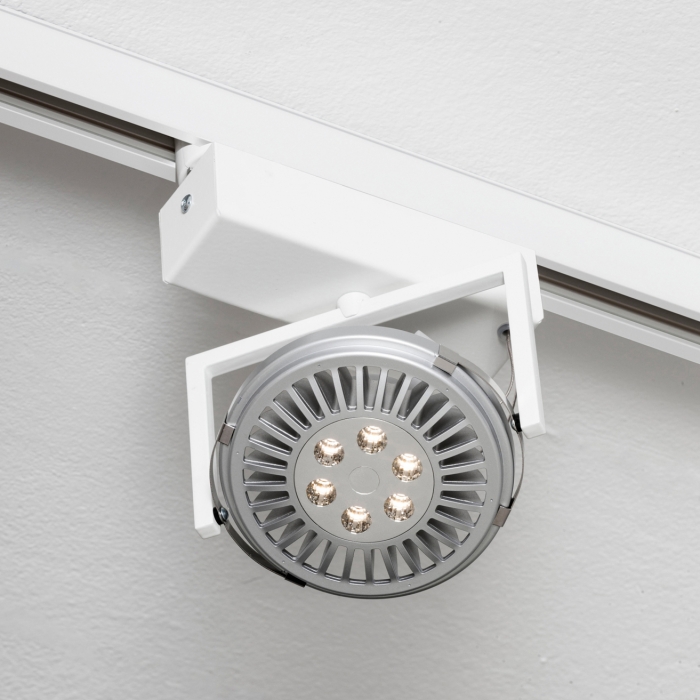

Track projector, independently adjustable, available in polished stainless steel and chrome or white painted finish. Wired for QR111 halogen or PROLEDspot 111 (by Osram), power supply included. Diapson Track is supplied with Eurostandard adapter. Suitable for a variety of concentrated and accent lighting solutions thanks to the directional light beams and the different opening angles available.



TECHNICAL DATA

SYMBOLS

PHOTOMETRIC CURVE

TS701 BA TRACK PROJECTOR,

Max 1x100W G53 230Vac QR111

Power supply included

 LED READY Classe I Energy saving Protection index IP20 Led CE marking Inflammable surfaces (F)

COLORS

BOX:

ACCESSORIES / COMPONENTS
LEDspot

Richiedere listino - Request Price List
LEDspot

DOCUMENTATION

Technical Drawing

Assembly Instructions

Data Sheet

Electrical Assembly Instructions
