Blade 1 Strip RGB + WHITE HI POWER
LED system

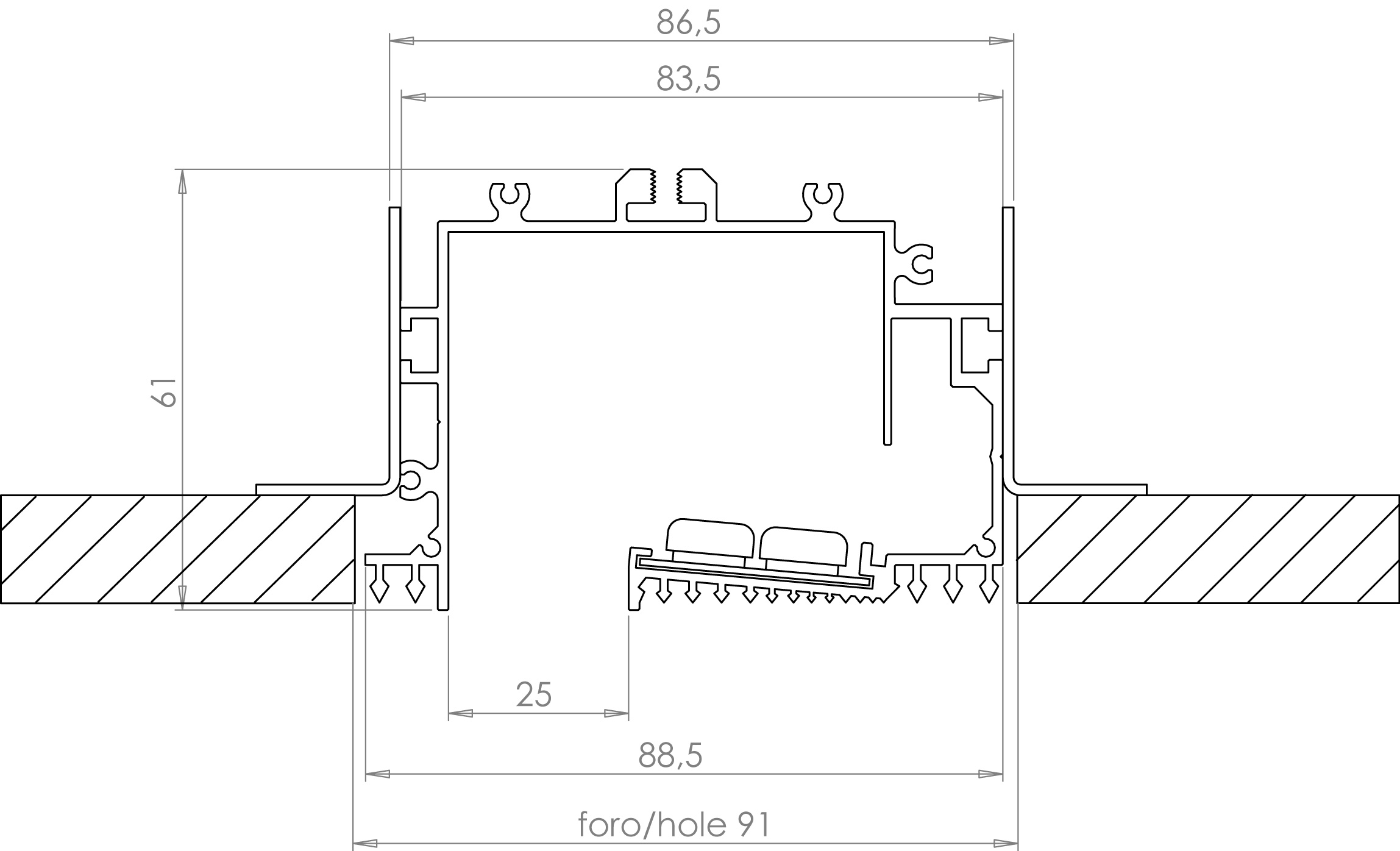

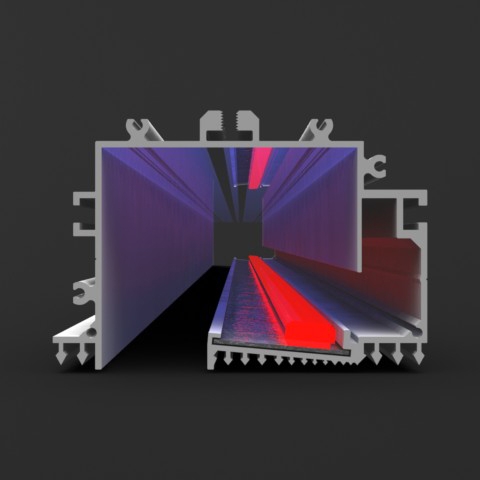

Aluminium profile by meter white painted with two IP20 led strips : one RGB (14,4W/m) and one HI-POWER White with luminous flux 1560 ℓm/m (19,2W/m) for a more performing light. Available in three colour temperatures (warm 3200K, neutral 4300K, cold 6000K). IP65 on request.
For the control of RGB colour and scenarios, the installation of the dimmer “3 channels” with the possibility of integration with RF remote control or DMX-512 with home & building automation systems is recommended.
The installation of a dimmer to adjust the light intensity of white is recommended.
Opportunity to plan scenarios using the control unit OT DALI by Osram.
TECHNICAL DATA |
SYMBOLS |
PHOTOMETRIC CURVE |
TS 607 LZ 01 K3 RECESSED 1x STRIP LED RGB IP20 + 1x STRIP LED WHITE 3200K |
|
|
TS 607 LZ 01 K4 RECESSED 1x STRIP LED RGB IP20 + 1x STRIP LED WHITE 4300K |
|
|
|
|
||
TS 607 LA 01 STARTING KIT RGB + WHITE |
||
TS 617 LZ 01 K3 RECESSED 1x STRIP LED RGB IP65 + 1x STRIP LED WHITE 3200K |
|
|
TS 617 LZ 01 K4 RECESSED 1x STRIP LED RGB IP65 + 1x STRIP LED WHITE 4300K |
|
|
|
|
||
TS 617 LA 01 STARTING KIT RGB + WHITE |
COLORS |
|
BOX: |
|
ACCESSORIES / COMPONENTS |
||

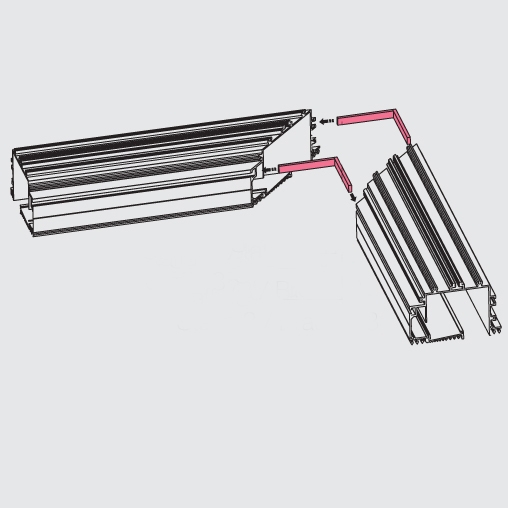

JUNTION (vedi datasheet)) |
Driver (vedi datasheet) |
|
DOCUMENTATION |
