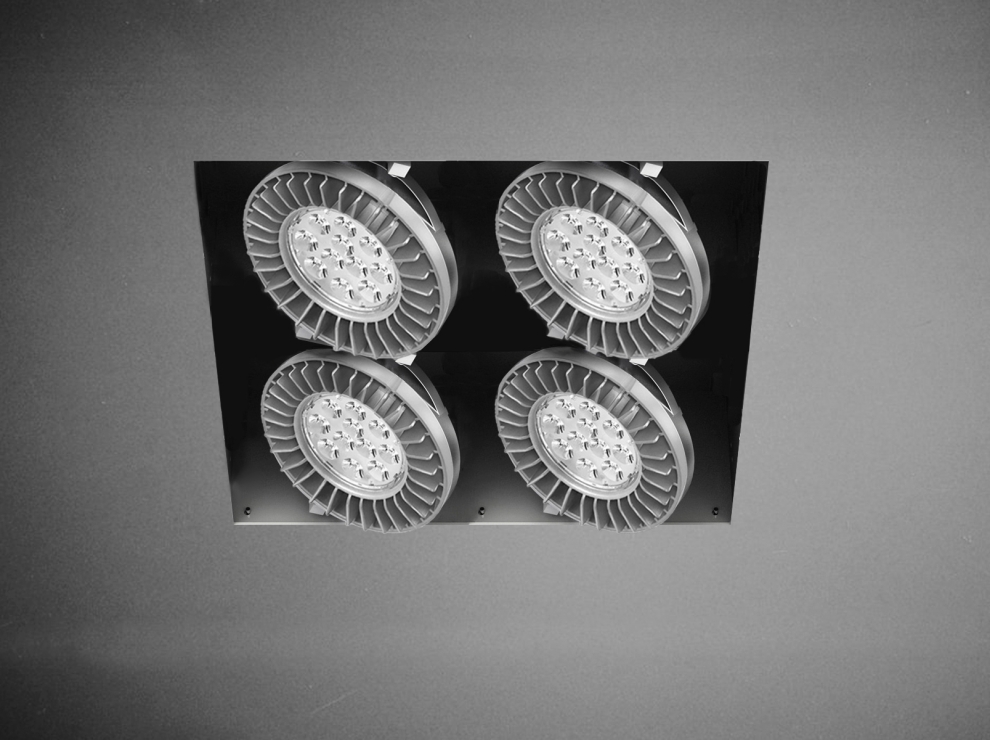

Diapson frameless LED 4 luci quadro COINLIGHT

Diapson frameless LED 4 light COINLIGHT quadro

Recessed LED light

Recessed LED light fitting for indoor, without frame, made up from 1 up to 4 lights independently adjustable. Available in metal painted entirely white, black, grey. The appliances are provided with LED COINLIGHT lamps (By
Osram) and its power supply. Each article is equipped with a plaster Kit for a total recessed installation both on plasterboard. For brickwall it is necessary to order the special accessory. It is an alternative solution to metal halide CDM-R111 version with the following advantages: energy saving, higher luminous flux, higher color rendering index, lower maintenance costs and immediate switch-on of the lamp. Perfect customized solution for accents lighting in shops, showroom spaces thanks to the directional light beams. On request, it is available the Up & Down Kit for full extension and pointing of the optical unit.



TECHNICAL DATA

SYMBOLS

PHOTOMETRIC CURVE

T032 LC (color) M K3 RECESSED LIGHT 90°,

LED LAMP COINLIGHT 4x22,5W (104W*),

Lens 24°, 3000K, 1740lm x 4 (7705 cd)

700mA power supply included



T032 LC (color) M K4 RECESSED LIGHT 90°,

LED LAMP COINLIGHT 4x22,5W (104W*),

Lens 24°, 4000K, 1850lm x 4 (8155 cd)

700mA power supply included



T032 LH (color) M K3 RECESSED LIGHT 90°,

LED LAMP COINLIGHT 4x33,8W (156W*),

Lens 24°, 3000K, 2550lm x 4 (11230 cd)

1050mA power supply included



T032 LH (color) M K4 RECESSED LIGHT 90°,

LED LAMP COINLIGHT 4x33,8W (156W*),

Lens 24°, 4000K, 2700lm x 4 (11885 cd)

1050mA power supply included

 LED INSIDE Classe I Energy saving Protection index IP20 Protection index IP23 Led CE marking Inflammable surfaces (F)

T032 LC (color) W K3 RECESSED LIGHT 90°,

LED LAMP COINLIGHT 4x22,5W (104W*),

Lens 40°, 3000K, 1740lm x 4 (3570 cd)

700mA power supply included



T032 LC (color) W K4 RECESSED LIGHT 90°,

LED LAMP COINLIGHT 4x22,5W (104W*),

Lens 40°, 4000K, 1850lm x 4 (3780 cd)

700mA power supply included



T032 LH (color) W K3 RECESSED LIGHT 90°,

LED LAMP COINLIGHT 4x33,8W (156W*),

Lens 40°, 3000K, 2550lm x 4 (5200 cd)

1050mA power supply included



T032 LH (color) W K4 RECESSED LIGHT 90°,

LED LAMP COINLIGHT 4x33,8W (156W*),

Lens 40°, 4000K, 2700lm x 4 (5505 cd)

1050mA power supply included

 LED INSIDE Classe I Energy saving Protection index IP20 Protection index IP23 Led CE marking Inflammable surfaces (F)

COLORS

BOX:

NOTES

* Total absorded power by the lighting fixture

ACCESSORIES / COMPONENTS

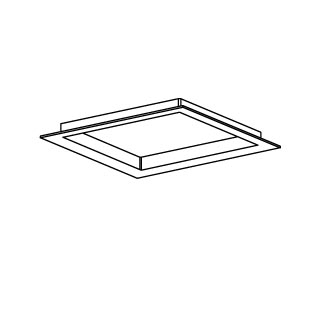

Plasterkit

Plasterkit frame for plasterboard included
TA017 01 WHITE / 02 GREY/ 03 BLACK

TA017 01 white / 02 grey / 03 black Up & Down Kit for full extension and orientation of the optical unit
DRIVER One for each Coinlight, included, 22,5W - 68x140xh30mm / 33,8W - 68x140xh30mm

DRIVER One for each Coinlight, included, 22,5W - 68x140xh30mm / 33,8W - 68x140xh30mm

DOCUMENTATION

Technical Drawing

Assembly Instructions

Data Sheet

Electrical Assembly Instructions
