diapson semi-incasso

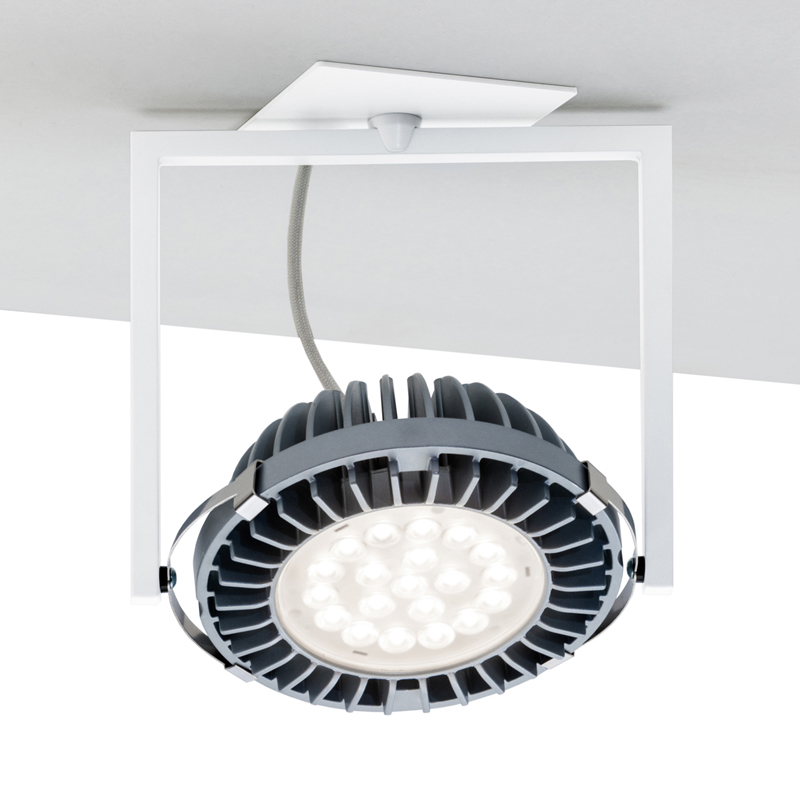

Diapson COINLIGHT LED semi-recessed 1 light

Wall/ceiling LED Lamp

Semi-recessed light fitting with adjustable LED source, architectural lamp for indoor in polished steel and chrome finish or matt white painted. The appliance is provided with LED COINLIGHT lamp (By Osram) and its proper power supply. This is an alternative solution to CDM-R111 metal halide with the following advantages: energy saving, higher luminous flux, higher color rendering index, lower maintenance costs and immediate switch-on of the lamp.



TECHNICAL DATA

SYMBOLS

PHOTOMETRIC CURVE

T020 LB (color) W K3 SEMI-RECESSED,

1 x 22,5W (26W*) 230Vac COINLIGHT (included)

Lens 40°, 3000K, 1740lm x 1 (3570 cd)

700mA power supply included



T020 LB (color) W K4 SEMI-RECESSED,

1 x 22,5W (26W*) 230Vac COINLIGHT (included)

Lens 40°, 4000K, 1850lm x 1 (3780 cd)

700mA power supply included



T020 LH (color) W K3 SEMI-RECESSED,

1 x 33,8W (39W*) 230Vac COINLIGHT (included)

Lens 40°, 3000K, 2550lm x 1 (5200 cd)

1050mA power supply included



T020 LH (color) W K4 SEMI-RECESSED,

1 x 33,8W (39W*) 230Vac COINLIGHT (included)

Lens 40°, 4000K, 2700lm x 1 (5505 cd)

1050mA power supply included

 LED INSIDE Classe III Energy saving Protection index IP20 Protection index IP23 Led CE marking Inflammable surfaces (F)

T020 LB (color) M K3 semi-recessed,

1 x 22,5W (26W*) 230Vac COINLIGHT (included)

Lens 24°, 3000K, 1740lm x 1 (7705 cd)

700mA power supply included



T020 LB (color) M K4 semi-recessed,

1 x 22,5W (26W*) 230Vac COINLIGHT (included)

Lens 24°, 4000K, 1850lm x 1 (8155 cd)

700mA power supply included



T020 LH (color) M K3 semi-recessed,

1 x 33,8W (39W*) 230Vac COINLIGHT (included)

Lens 24°, 3000K, 2550lm x 1 (11230 cd)

1050mA power supply included



T020 LH (color) M K4 semi-recessed,

1 x 33,8W (39W*) 230Vac COINLIGHT (included)

Lens 24°, 4000K, 2700lm x 1 (11885 cd)

1050mA power supply included

 LED INSIDE Classe III Energy saving Protection index IP20 Protection index IP23 Led CE marking Inflammable surfaces (F)

COLORS

BOX:

NOTES

* On request finishings

** Total absorded power by the lighting fixture

ACCESSORIES / COMPONENTS
DRIVER included, 22,5W - 68x140x30mm / 33,8W - 68x140x30mm

DRIVER included 22,5W - 68x140x30 mm / 33,8W - 68x140x30mm
