immagine

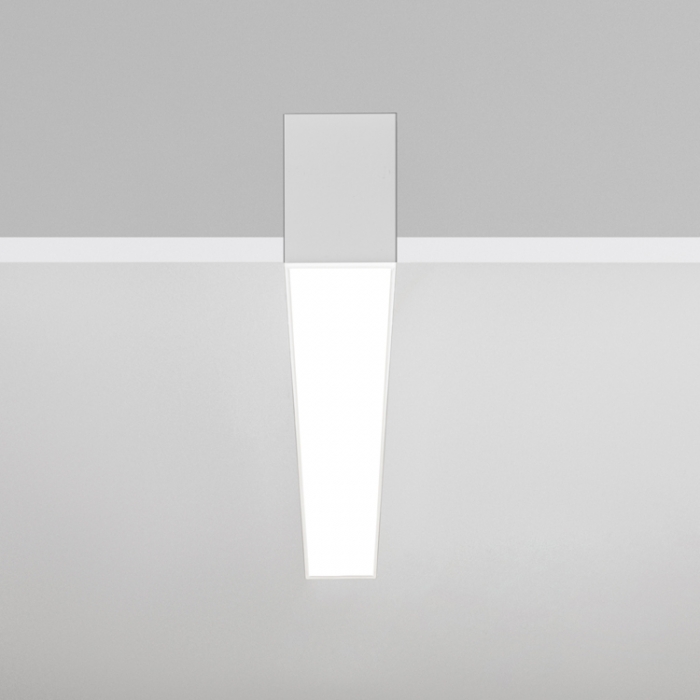

Stripe GO frameless LED

Recessed frameless  lamp made up of electrified single element, aluminium profile designed for housing one or two IP20 led strips with high luminous flux 1560 lm/m (19,2 W/m), 2,5 cm pitch, and complete with end caps and satin PMMA diffuser.

Available in the brushed natural aluminium and shiny white finishings.

Available in three white colour temperatures K3, K4, K6 (warm 3200K, neutral 4300K, cold 6000K).



TECHNICAL DATA

SYMBOLS

PHOTOMETRIC CURVE

T553 LA A K3 RECESSED L:591

1 STRIP LED HI-POWER  P.2,5cm

902lm 3200K 12W 24Vdc



T553 LA A K4 RECESSED L:591

1 STRIP LED HI-POWER  P.2,5cm

912lm 4300K 12W 24Vdc



T553 LA A K6 RECESSED L:591

1 STRIP LED HI-POWER  P.2,5cm

920lm 6000K 12W 24Vdc

 LED INSIDE Classe III Energy saving Protection index IP43 Led CE marking Inflammable surfaces (F)

T554 LA A K3 RECESSED

2 STRIP LED HI-POWER  P.2,5cm

1804lm 3200K 24W 24Vdc



T554 LA A K4 RECESSED

2 STRIP LED HI-POWER  P.2,5cm

1824lm 4300K 24W 24Vdc



T554 LA A K6 RECESSED

2 STRIP LED HI-POWER  P.2,5cm

1920lm 6000K 24W 24Vdc

 LED INSIDE Classe III Energy saving Protection index IP43 Led CE marking Inflammable surfaces (F)

T553 LC A K3 RECESSED L:891

1 STRIP LED HI-POWER  P.2,5cm

1354lm 3200K 17,5W 24Vdc



T553 LC A K4 RECESSED L:891

1 STRIP LED HI-POWER  P.2,5cm

1368lm 4300K 17,5W 24Vdc



T553 LC A K6 RECESSED L:891

1 STRIP LED HI-POWER  P.2,5cm

1440lm 6000K 17,5W 24Vdc

 LED INSIDE Classe III Energy saving Protection index IP43 Led CE marking Inflammable surfaces (F)

T554 LC A K3 RECESSED L:891

2 STRIP LED HI-POWER  P.2,5cm

2708lm 3200K 35W 24Vdc



T554 LC A K4 RECESSED L:891

2 STRIP LED HI-POWER  P.2,5cm

2736lm 4300K 35W 24Vdc



T554 LC A K6 RECESSED L:891

2 STRIP LED HI-POWER  P.2,5cm

2880lm 6000K 35W 24Vdc

 LED INSIDE Classe III Energy saving Protection index IP43 Led CE marking Inflammable surfaces (F)

T553 LE A K3 RECESSED L:1191

1 STRIP LED HI-POWER  P.2,5cm

1805lm 3200K 23,5W 24Vdc



T553 LE A K4 RECESSED L:1191

1 STRIP LED HI-POWER  P.2,5cm

1824lm 4300K 23,5W 24Vdc



T553 LE A K6 RECESSED L:1191

1 STRIP LED HI-POWER  P.2,5cm

1920lm 6000K 23,5W 24Vdc

 LED INSIDE Classe III Energy saving Protection index IP43 Led CE marking Inflammable surfaces (F)

T554 LE A K3 RECESSED L:1191

2 STRIP LED HI-POWER  P.2,5cm

3610lm 3200K 47W 24Vdc



T554 LE A K4 RECESSED L:1191

2 STRIP LED HI-POWER  P.2,5cm

3648lm 4300K 47W 24Vdc



T554 LE A K6 RECESSED L:1191

2 STRIP LED HI-POWER  P.2,5cm

3840lm 6000K 47W 24Vdc

 LED INSIDE Classe III Energy saving Protection index IP43 Led CE marking Inflammable surfaces (F)

T553 LG A K3 RECESSED L:1491

1 STRIP LED HI-POWER  P.2,5cm

2256lm 3200K 29W 24Vdc



T553 LG A K4 RECESSED L:1491

1 STRIP LED HI-POWER  P.2,5cm

2280lm 4300K 29W 24Vdc



T553 LG A K6 RECESSED L:1491

1 STRIP LED HI-POWER  P.2,5cm

2400lm 6000K 29W 24Vdc

 LED INSIDE Classe III Energy saving Protection index IP43 Led CE marking Inflammable surfaces (F)

T554 LG A K3 RECESSED L:1491

2 STRIP LED HI-POWER  P.2,5cm

4512lm 3200K 58W 24Vdc



T554 LG A K4 RECESSED L:1491

2 STRIP LED HI-POWER  P.2,5cm

4560lm 4300K 58W 24Vdc



T554 LG A K6 RECESSED L:1491

2 STRIP LED HI-POWER  P.2,5cm

4800lm 6000K 58W 24Vdc

 LED INSIDE Classe III Energy saving Protection index IP43 Led CE marking Inflammable surfaces (F)

T553 LJ A K3 RECESSED L:2376

1 STRIP LED HI-POWER  P.2,5cm

3610lm 3200K 46,5W 24Vdc



T553 LJ A K4 RECESSED L:2376

1 STRIP LED HI-POWER  P.2,5cm

3648lm 4300K 46,5W 24Vdc



T553 LJ A K6 RECESSED L:2376

1 STRIP LED HI-POWER  P.2,5cm

3840lm 6000K 46,5W 24Vdc

 LED INSIDE Classe III Energy saving Protection index IP43 Led CE marking Inflammable surfaces (F)

T554 LJ A K3 RECESSED L:2376

2 STRIP LED HI-POWER  P.2,5cm

7220lm 3200K 93W 24Vdc



T554 LJ A K4 RECESSED L:2376

2 STRIP LED HI-POWER  P.2,5cm

7296lm 4300K 93W 24Vdc



T554 LJ A K6 RECESSED L:2376

2 STRIP LED HI-POWER  P.2,5cm

7680lm 6000K 93W 24Vdc

 LED INSIDE Classe III Energy saving Protection index IP43 Led CE marking Inflammable surfaces (F)

T553 LL A K3 RECESSED L:2976

1 STRIP LED HI-POWER  P.2,5cm

4512lm 3200K 58W 24Vdc



T553 LL A K4 RECESSED L:2976

1 STRIP LED HI-POWER  P.2,5cm

4560lm 4300K 58W 24Vdc



T553 LL A K6 RECESSED L:2976

1 STRIP LED HI-POWER  P.2,5cm

4800lm 6000K 58W 24Vdc

 LED INSIDE Classe III Energy saving Protection index IP43 Led CE marking Inflammable surfaces (F)

T554 LL A K3 RECESSED L:2976

2 STRIP LED HI-POWER  P.2,5cm

9024lm 3200K 116W 24Vdc



T554 LL A K4 RECESSED L:2976

2 STRIP LED HI-POWER  P.2,5cm

9120lm 4300K 116W 24Vdc



T554 LL A K6 RECESSED L:2976

2 STRIP LED HI-POWER  P.2,5cm

9600lm 6000K 116W 24Vdc

 LED INSIDE Classe III Protection index IP43 Led CE marking Inflammable surfaces (F)

COLORS

BOX:

FRAME:

ACCESSORIES / COMPONENTS
driver image

Driver includet (see datasheet)
dimmable kit

dimmable kit (see electrical connection)

DOCUMENTATION

Technical Drawing

Assembly Instructions

Data Sheet

Electrical Assembly Instructions
