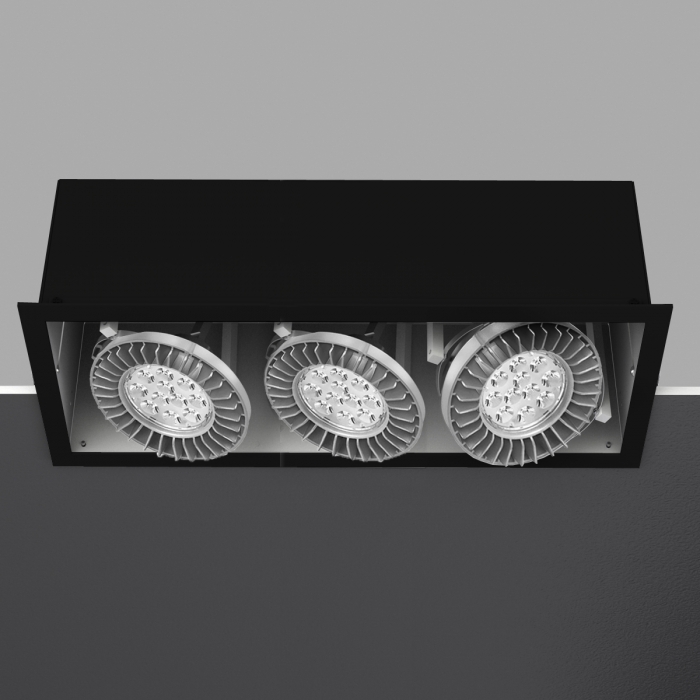

Diapson 3L COINLIGHT

Diapson COINLIGHT 3 luci

Recessed LED lamp

Recessed LED light fitting for indoor, with frame, with 3 lights independently adjustable. The appliances are provided with LED COINLIGHT lamps (By Osram) and its power supply. Available in metal painted entirely white, black, grey and with frame in shiny or brushed chrome and black inside. On request, available version entirely in gold or silver leaf. Frame and body may be supplied in different colour combinations. Available in two different colour temperature (3000K and 4000K), in two different power (26W and 39W) and in two different beam angle (24° and 40°)



TECHNICAL DATA

SYMBOLS

PHOTOMETRIC CURVE

T030 LE M K3 recessed,

LED LAMP COINLIGHT 3x22,5W (78W**) 230Vac (included),

lens 24°, 3000K, 1740lm x 3 (7705 cd)

700mA power supply included



T030 LE M K4 recessed,

LED LAMP COINLIGHT 3x22,5W (78W**) 230Vac (included),

lens 24°, 4000K, 1850lm x 3 (8155 cd)

700mA power supply included



T030 LL M K3 recessed,

LED LAMP COINLIGHT 3x33,8W (117W**) 230Vac (included),

lens 24°, 3000K, 2550lm x 3 (11230 cd)

1050mA power supply included



T030 LL M K4 recessed,

LED LAMP COINLIGHT 3x33,8W (117W**) 230Vac (included),

lens 24°, 4000K, 2700lm x 3 (11885 cd)

1050mA power supply included

 LED INSIDE Classe I Energy saving Protection index IP20 Protection index IP23 Protection index IP65 CE marking Inflammable surfaces (F)
LED INSIDE Classe I Energy saving Protection index IP20 Protection index IP23 Led CE marking Inflammable surfaces (F)

COLORS

BOX:

NOTES

* On request finishings

** Total absorded power by the lighting fixture

ACCESSORIES / COMPONENTS
kit estraibile

TA017 01 Bianco/White, TA017 02 Grigio/Grey, TA017 03 Nero/Black, TA017 04 Cromo/Chrome
Up&Down Kit for full extension and orientation of the optical unit
DRIVER One for each Coinlight, included, 22,5W - 68x140xh30mm / 33,8W - 68x140xh30mm

DRIVER One for each Coinlight, included, 22,5W - 68x140xh30mm / 33,8W - 68x140xh30mm

DOCUMENTATION

Technical Drawing

Assembly Instructions

Data Sheet

Electrical Assembly Instructions
