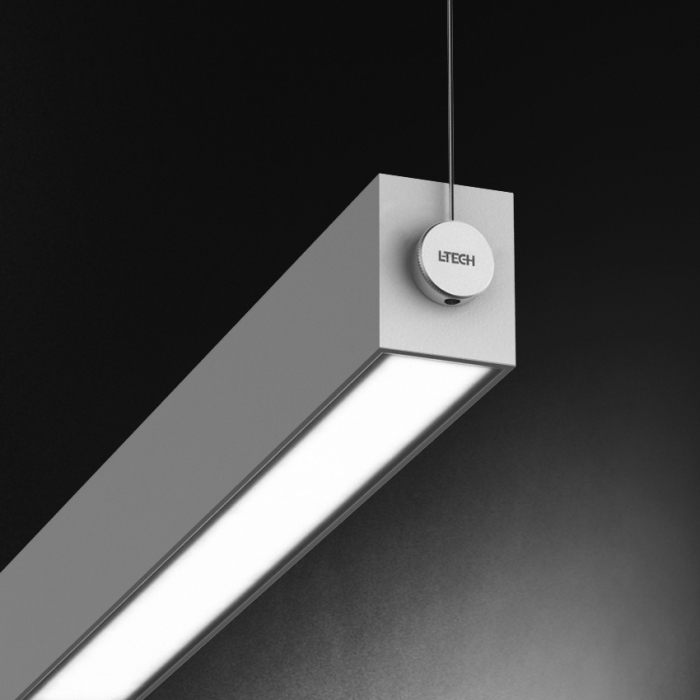

Stripe GO sospensione LED
Suspension lamp
Single-emission LED suspension made up of an electrified single element, aluminium profile designed for housing one or two IP20 led strips with high luminous flux 1560 lm/m (19,2 W/m), 2,5 cm pitch, and complete with end caps and satin PMMA diffuser. Elements up to 3000mm are equipped with a system for rotation at 180°. Available in the following anodized aluminium colours natural satin aluminium, shiny chrome and brushed titanium and in the following painted versions: shiny white and matt black. Available in three white colour temperatures K3, K4, K6 (warm 3200K, neutral 4300K, cold 6000K).
TECHNICAL DATA |
SYMBOLS |
PHOTOMETRIC CURVE |
T559 LA A K3 SUSPENSION L:591 1 STRIP LED HI-POWER P.2,5cm 902lm 3200K 12W 24Vdc
T559 LA A K4 SUSPENSION L:591 1 STRIP LED HI-POWER P.2,5cm 912lm 4300K 12W 24Vdc T559 LA A K6 SUSPENSION L:591 1 STRIP LED HI-POWER P.2,5cm 960lm 6000K 12W 24Vdc |
|
|
T560 LA A K3 SUSPENSION L:591 2 STRIP LED HI-POWER P.2,5cm 1804lm 3200K 24W 24Vdc
T560 LA A K4 SUSPENSION L:591 2 STRIP LED HI-POWER P.2,5cm 1824lm 4300K 24W 24Vdc
T560 LA A K6 SUSPENSION L:591 2 STRIP LED HI-POWER P.2,5cm 1920lm 6000K 24W 24Vdc |
|
|
T559 LC A K3 SUSPENSION L:891 1 STRIP LED HI-POWER P.2,5cm 1354lm 3200K 17,5W 24Vdc
T559 LC A K4 SUSPENSION L:891 1 STRIP LED HI-POWER P.2,5cm 1368lm 4300K 17,5W 24Vdc T559 LC A K6 SUSPENSION L:891 1 STRIP LED HI-POWER P.2,5cm 1440lm 6000K 17,5W 24Vdc |
|
|
T560 LC A K3 SUSPENSION L:891 2 STRIP LED HI-POWER P.2,5cm 2708lm 3200K 35W 24Vdc
T560 LC A K4 SUSPENSION L:891 2 STRIP LED HI-POWER P.2,5cm 2736lm 4300K 35W 24Vdc
T560 LC A K6 SUSPENSION L:891 2 STRIP LED HI-POWER P.2,5cm 2880lm 6000K 35W 24Vdc |
|
|
T559 LE A K3 SUSPENSION L:1191 1 STRIP LED HI-POWER P.2,5cm 1805lm 3200K 23,5W 24Vdc
T559 LE A K4 SUSPENSION L:1191 1 STRIP LED HI-POWER P.2,5cm 1824lm 4300K 23,5W 24Vdc T559 LE A K6 SUSPENSION L:1191 1 STRIP LED HI-POWER P.2,5cm 1920lm 6000K 23,5W 24Vdc |
|
|
T560 LE A K3 SUSPENSION L:1191 2 STRIP LED HI-POWER P.2,5cm 3610lm 3200K 47W 24Vdc
T560 LE A K4 SUSPENSION L:1191 2 STRIP LED HI-POWER P.2,5cm 3648lm 4300K 47W 24Vdc
T560 LE A K6 SUSPENSION L:1191 2 STRIP LED HI-POWER P.2,5cm 3840lm 6000K 47W 24Vdc |
|
|
T559 LG A K3 SUSPENSION L:1491 1 STRIP LED HI-POWER P.2,5cm 2256lm 3200K 29W 24Vdc
T559 LG A K4 SUSPENSION L:1491 1 STRIP LED HI-POWER P.2,5cm 2280lm 4300K 29W 24Vdc T551 LG A K6 SUSPENSION L:1491 1 STRIP LED HI-POWER P.2,5cm 2400lm 6000K 29W 24Vdc |
|
|
T560 LG A K3 SUSPENSION L:1491 2 STRIP LED HI-POWER P.2,5cm 4512lm 3200K 58W 24Vdc
T560 LG A K4 SUSPENSION L:1491 2 STRIP LED HI-POWER P.2,5cm 4560lm 4300K 58W 24Vdc
T560 LG A K6 SUSPENSION L:1491 2 STRIP LED HI-POWER P.2,5cm 4800lm 6000K 58W 24Vdc |
|
|
T559 LJ A K3 SUSPENSION L:2376 1 STRIP LED HI-POWER P.2,5cm 3610lm 3200K 46,5W 24Vdc
T559 LJ A K4 SUSPENSION L:2376 1 STRIP LED HI-POWER P.2,5cm 3648lm 4300K 46,5W 24Vdc T559 LJ A K6 SUSPENSION L:2376 1 STRIP LED HI-POWER P.2,5cm 3840lm 6000K 46,5W 24Vdc |
|
|
T560 LJ A K3 SUSPENSION L:2376 2 STRIP LED HI-POWER P.2,5cm 7220lm 3200K 93W 24Vdc
T560 LJ A K4 SUSPENSION L:2376 2 STRIP LED HI-POWER P.2,5cm 7296lm 4300K 93W 24Vdc
T560 LJ A K6 SUSPENSION L:2376 2 STRIP LED HI-POWER P.2,5cm 7680lm 6000K 93W 24Vdc |
|
|
T559 LL A K3 SUSPENSION L:2976 1 STRIP LED HI-POWER P.2,5cm 4512lm 3200K 58W 24Vdc
T559 LL A K4 SUSPENSION L:2976 1 STRIP LED HI-POWER P.2,5cm 4560lm 4300K 58W 24Vdc T559 LL A K6 SUSPENSION L:2976 1 STRIP LED HI-POWER P.2,5cm 4800lm 6000K 58W 24Vdc |
|
|
T560 LL A K3 SUSPENSION L:2976 2 STRIP LED HI-POWER P.2,5cm 9024lm 3200K 116W 24Vdc
T560 LL A K4 SUSPENSION L:2976 2 STRIP LED HI-POWER P.2,5cm 9120lm 4300K 116W 24Vdc
T560 LL A K6 SUSPENSION L:2976 2 STRIP LED HI-POWER P.2,5cm 9600lm 6000K 116W 24Vdc |
|
COLORS |
|
BOX: |
|
ACCESSORIES / COMPONENTS |
||
dimmable kit (see electrical connection) |
||
DOCUMENTATION |
