Diapson 6 lights

359° revolving light

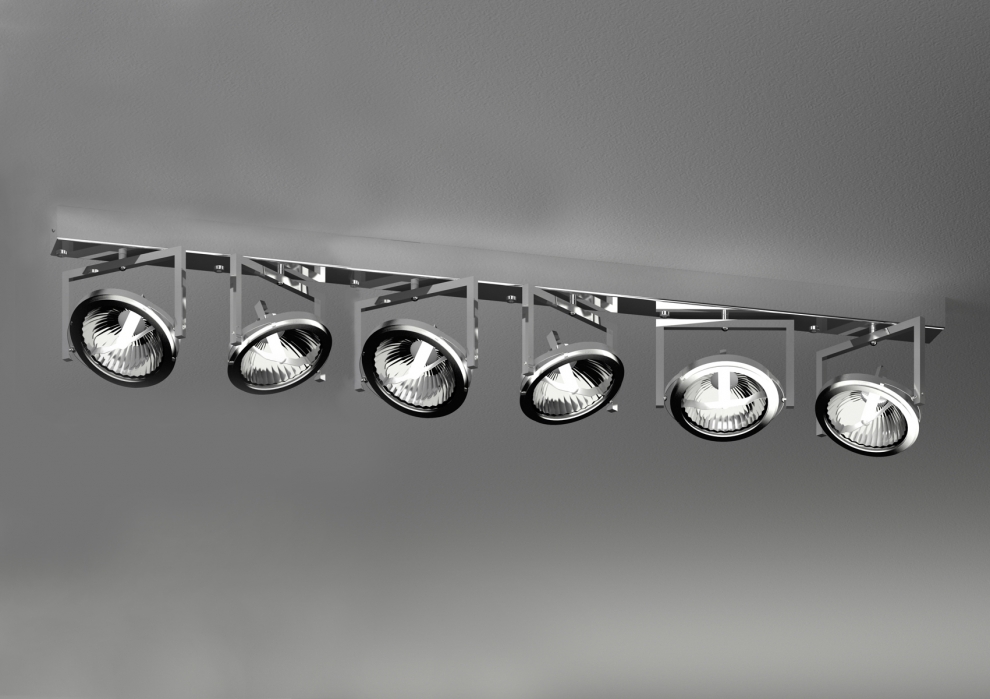

Diapson LED 6 lights wall/ceiling lamp

Wall/ceiling lamp for interiors

Indoor light fitting, with 1 to 6 independently adjustable lights, with steel and polished chrome finish. Wired for QR111 12 volts or HCI111 metal halide. Ideal for a variety of lighting solutions thanks to beams of orientated light. It can be easily installed on walls or ceilings.



TECHNICAL DATA

SYMBOLS

PHOTOMETRIC CURVE

T020 BF WALL-CEILING LEDspot 111 12W RETROFIT By OSRAM Equivalent 50W halogen

 Classe I Protection index IP20 Led CE marking Inflammable surfaces (F)

COLORS

BOX:
ral customization

NOTES

ACCESSORIES / COMPONENTS

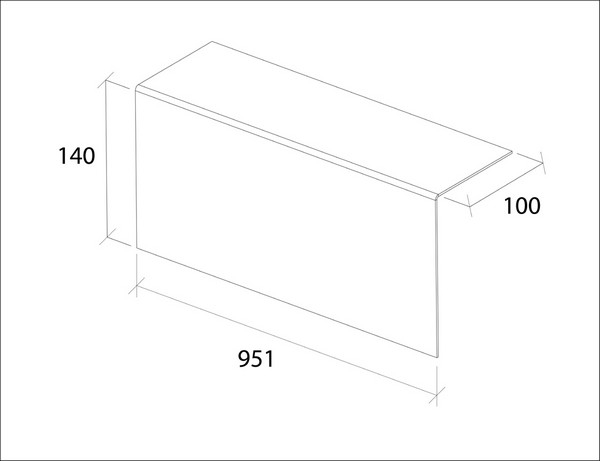

Kit "L" screen

TA024
Kit "L" screen

DOCUMENTATION

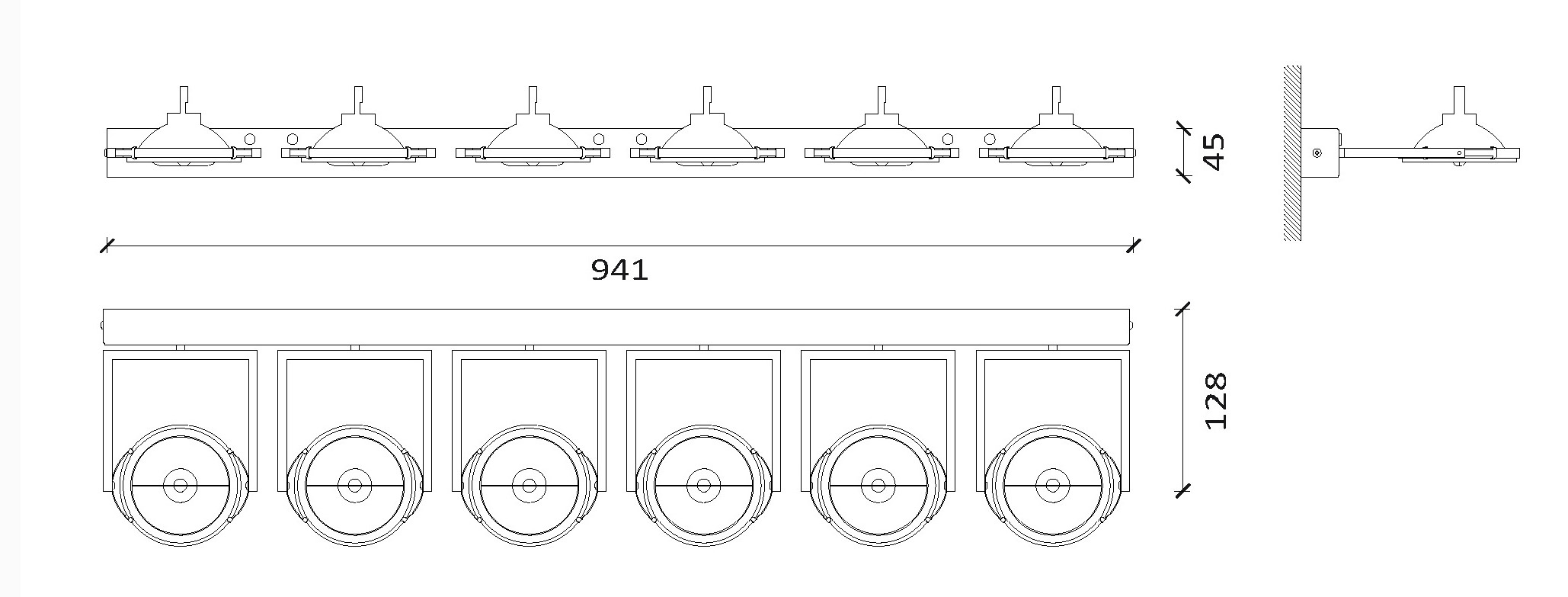

Technical Drawing

Assembly Instructions

Data Sheet
