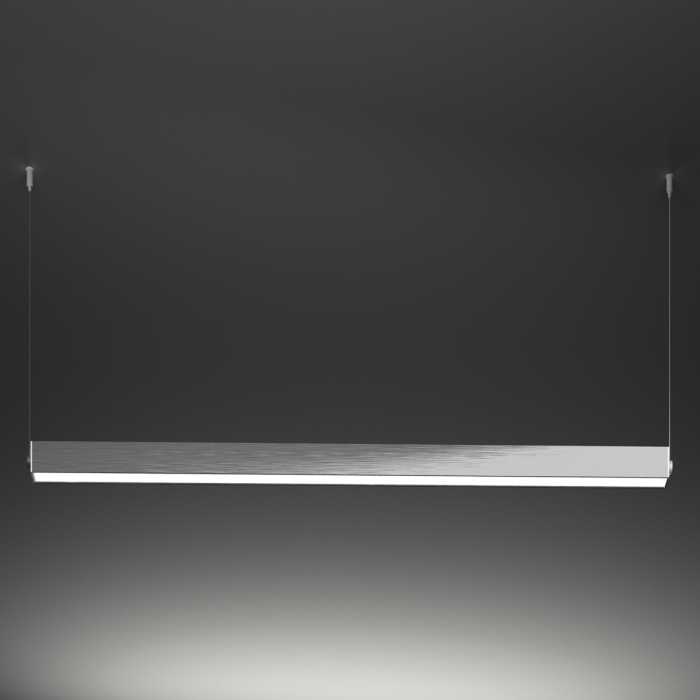

Stripe suspension lamp

T510Down-lightHigh outputRotation 180°

Stripe suspension light unidirectional T5 normal

Suspension lamp

Single-emission suspension made up of an electrified single element, aluminium profile designed for housing normal T5 lamps, and complete with end caps and PMMA diffuser or darklight screen.

Elements up to 3000mm are equipped with a system for rotation at 180°.

Available in the following anodized aluminium colours natural satin aluminium, shiny chrome and brushed titanium and in the following painted versions: shiny white and matt black.

The T5 lamps are available in two versions:

-      HE to maximize the luminous efficiency and get a constant luminance even by different elements with several lengths and powers.

-      HO to obtain the maximum luminous flux.  The use of HO lamps is advised for installation of several elements with the same power.



TECHNICAL DATA

SYMBOLS

PHOTOMETRIC CURVE

T510 FA A (diffuser) SUSPENSION 1x14W G5 T5-HE L1 591

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

T510 FA B (darklight) SUSPENSION 1x14W G5 T5-HE L1 591

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

T510 FB A (diffuser) SUSPENSION 1x24W G5 T5-HO L1 591

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

T510 FB B (darklight) SUSPENSION 1x24W G5 T5-HO L1 591

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

T510 FC A (diffuser) SUSPENSION 1x21W G5 T5-HE L1 891

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

T510 FC B (darklight) SUSPENSION 1x21W G5 T5-HE L1 891

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

T510 FD A (diffuser) SUSPENSION 1x39W G5 T5-HE L1 891

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

T510 FD B (darklight) SUSPENSION 1x39W G5 T5-HE L1 891

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

T510 FE A (diffuser) SUSPENSION 1x28W G5 T5-HE L1 1191

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

T510 FE B (darklight)  SUSPENSION 1x28W G5 T5-HE L1 1191

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

T510 FF A (diffuser) SUSPENSION 1x54W G5 T5-HO L1 1191

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

T510 FF B (darklight) SUSPENSION 1x54W G5 T5-HO L1 1191

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

T510 FG A (diffuser) SUSPENSION 1x35W G5 T5-HE L1 1491

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

T510 FG B (darklight) SUSPENSION 1x35W G5 T5-HE L1 1491

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

T510 FH A (diffuser) SUSPENSION 1x49W G5 T5-HO L1 1491

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

T510 FH B (darklight) SUSPENSION 1x49W G5 T5-HO L11491

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

T510 FI A (diffuser) SUSPENSION 1x80W G5 T5-HO L1 1491

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

T510 FI B (darklight) SUSPENSION 1x80W G5 T5-HO L1 1491

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

T510 FJ A (diffusor) SUSPENSION 2x28W G5 T5-HE L1 2376

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

T510 FJ B (darklight) SUSPENSION 2x28W G5 T5-HE L1 2376

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

T510 FK A (diffusor) SUSPENSION 2x54W G5 T5-HO L1 2376

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

T516 FK B (darklight) SUSPENSION  2x54W G5 T5-HO L1 2376

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

T510 FL A (diffuser) SUSPENSION 2x35W G5 T5-HE L1 2976

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

T510 FL B (darklight) RECESSED 2x35W G5 T5-HE L1 2976

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

T510 FM A (diffusor) SUSPENSION 2x49W G5 T5-HO L1 2976

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

T510 FM B (darklight) SUSPENSION 2x49W G5 T5-HO L1 2976

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

T510 FN A (diffusor) SUSPENSION 2x80W G5 T5-HO L1 2976

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

T510 FN B (darklight) SUSPENSION 2x80W G5 T5-HO L1 2976

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

COLORS

BOX:
ral customization

ACCESSORIES / COMPONENTS
driver

emergency kit (see electrical connection) only 120-150 version
driver

dimmable kit (see electrical connection)
