Riflesso

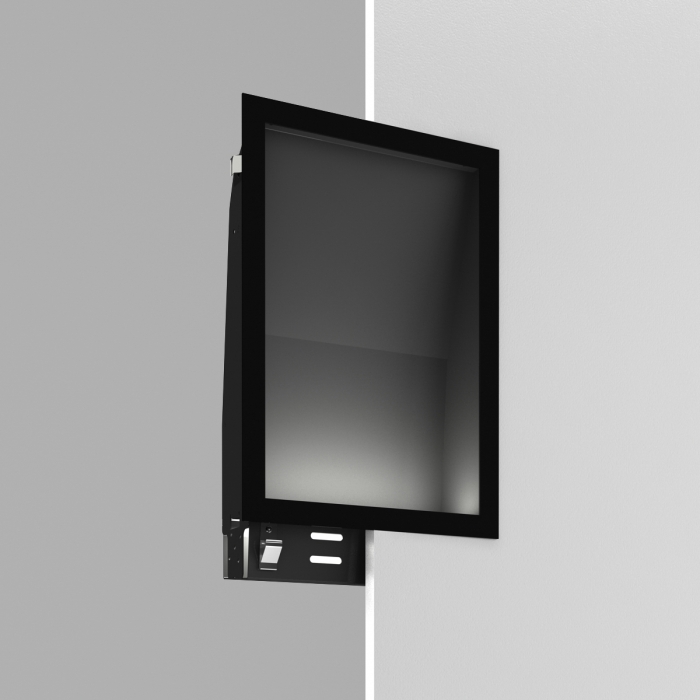

Riflesso Hit 35 recessed light

Recessed light

Recessed light fitting for internal diffused light. Metal painted entirely white, black, grey and in polished or brushed chrome with grey interior. Available in two sizes. It uses linear halogen lamps with R7s bulbs(114mm) or metal halide lamps Rx7s. Thanks to its versatility, it is particularly suitable for the lighting of both public and private environments. Usable on plasterboard or brick, with special formwork.



TECHNICAL DATA

SYMBOLS

PHOTOMETRIC CURVE

T008 HB RECESSED 1x150W Rx7s HIT-DE

 Classe I Protection index IP20 CE marking Inflammable surfaces (F)

COLORS

BOX:

FRAME:

CUSTOMIZATION:
ral customization

NOTES

Power supply not included

ACCESSORIES / COMPONENTS

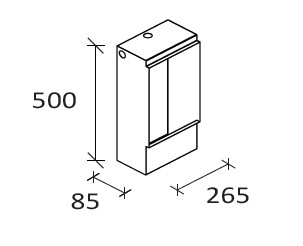

Recessed box

TC005
Recessed box
power supply for metal halide

TE001
Power supply for metal halide (see electrical connection)

DOCUMENTATION

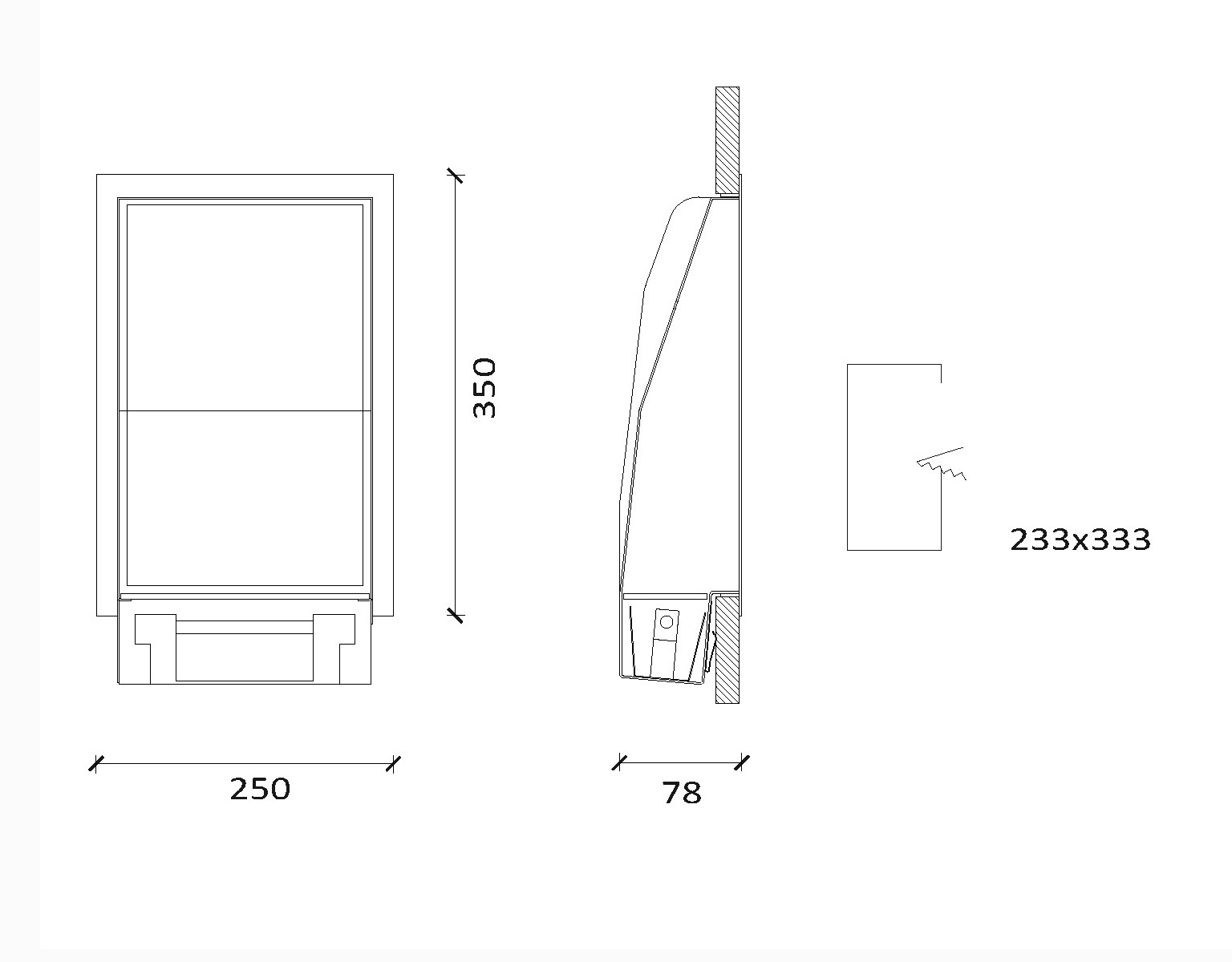

Technical Drawing

Assembly Instructions

Data Sheet

Electrical Assembly Instructions
