Diapson 1 light

IP20359° revolving light

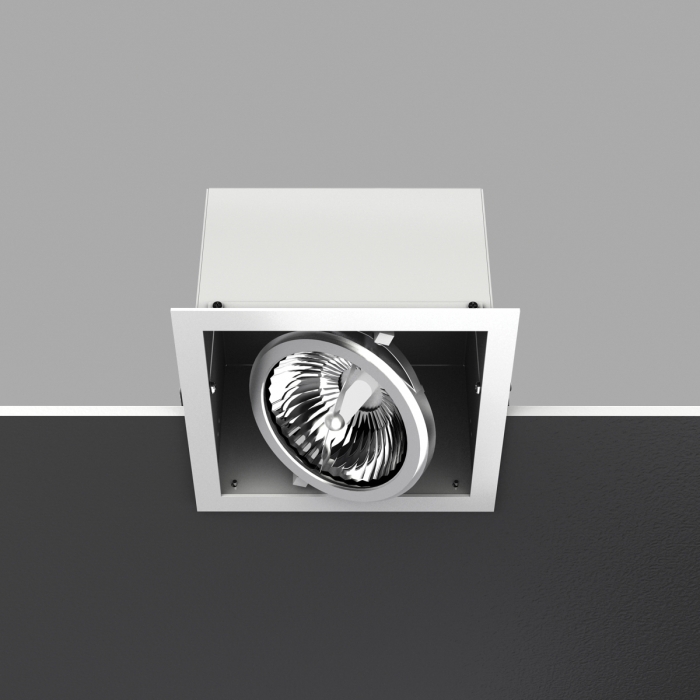

Diapson Alo - Hit 1 light recessed lamp

Recessed light

Architectural recessed fitting, with 1 to 4 lamps independently adjustable, wired for halogen QR111 o PRO LEDspot 111 (by Osram) in 12 volt or CDM-R111metal halide. Available in metal painted white, black, grey and in polished or brushed chrome with grey inside. Available frame in gold, silver or copper leaf and inside colour at choice. On request, frame and body may be supplied in different colour combinations. Perfect customized solution for accents lighting in shops, showroom spaces thanks to the directional light beams. On request, it is available the Up & Down Kit for full extension and pointing of the optical unit.



TECHNICAL DATA

SYMBOLS

PHOTOMETRIC CURVE

T030 BA RECESSED Max 1x100W G53 QR111 (12V)

ALO (for plasterboard)

 LED READY Classe III Energy saving Protection index IP23 Led CE marking Inflammable surfaces (F)

T030 HA RECESSED Max 1x70W GX8,5 230Vac CDM-R111

HIT (for plasterboard)

 Classe I Protection index IP23 CE marking Inflammable surfaces (F)

COLORS

BOX:

FRAME:

CUSTOMIZATION:
ral customization

NOTES

Transformer not included

ACCESSORIES / COMPONENTS
saliscendi

TA017 01 bianco / 02 grigio / 03 nero / 04 cromo
LED LAMP

SB00...
PRO LEDspot 111 by Osram
driver

TE001
Power supply for metal halide 70W (see electrical connection)

driver

TE053
power supply 12Vdc (see electrical connection)

DOCUMENTATION

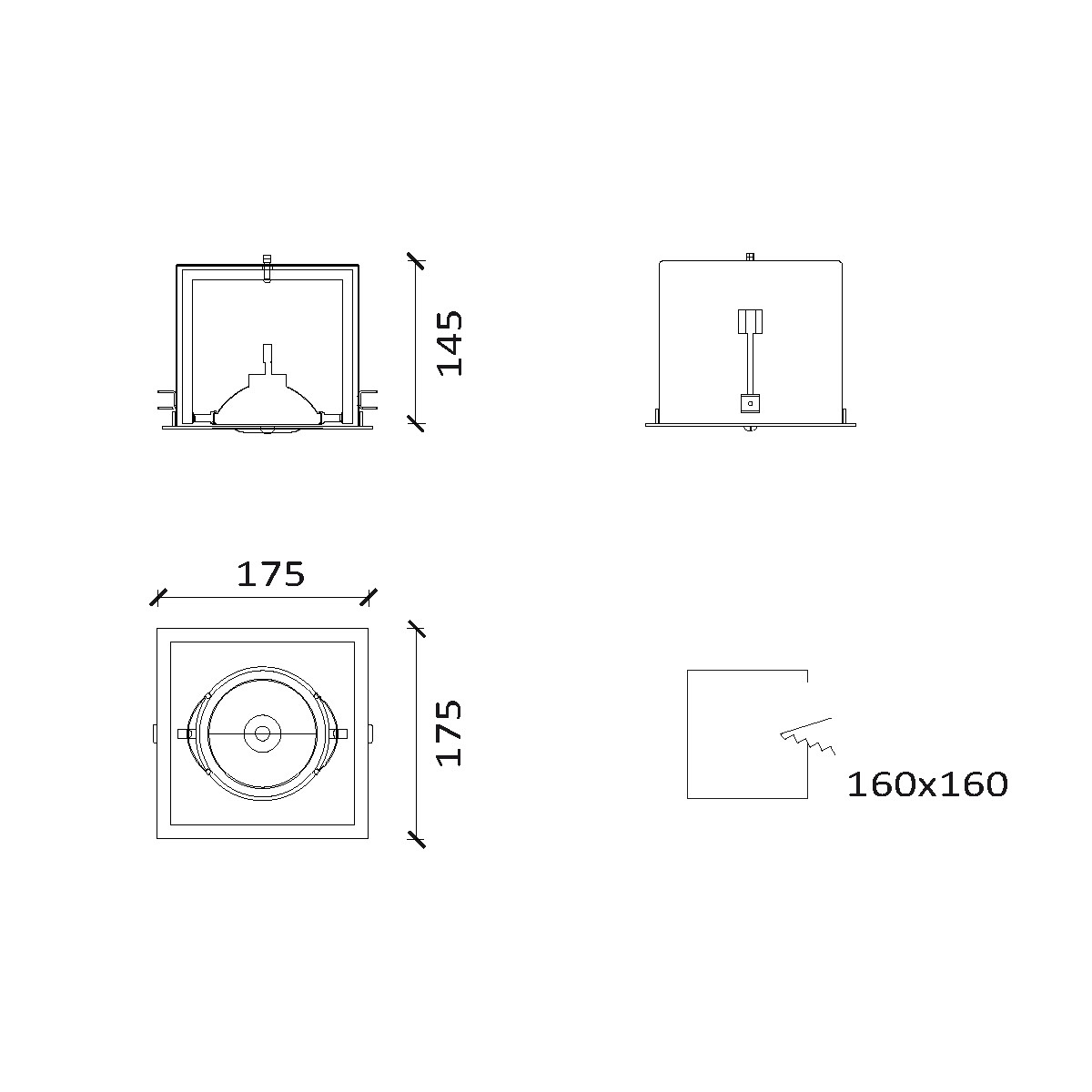

Technical Drawing

Assembly Instructions

Data Sheet

Electrical Assembly Instructions






back to previous page »
