Fessura 45

Down-lightUp-lightQuick assembling

Fessura 45 brickwall

Recessed light

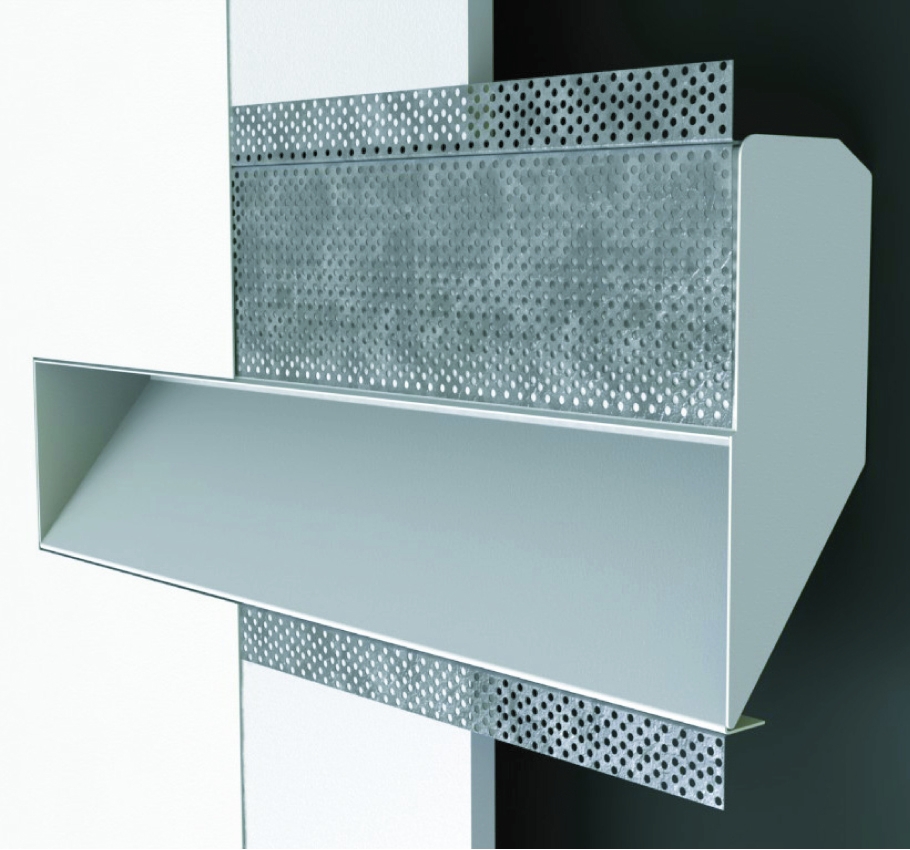

Recessed wallwasher for interiors with indirect diffused light. Metal white painted inside. The product is installed, coated and smoothed at the same grade of the surrounding wall. The electrified portion is mounted afterwards. The product is available in lengths 450 mm,  with different electrifications and powers. Available for installation on brick wall without the use of a recessed box. The metacrilate diffuser (A) is recommended for vertical installation only.



TECHNICAL DATA

SYMBOLS

PHOTOMETRIC CURVE

T038FA RECESSED L.450 BRICKWALL 1x22W 2Gx11 HE 100 lm/W

 Classe I Energy saving Protection index IP20 CE marking Inflammable surfaces (F)

T038FB RECESSED L.450 BRICKWALL 1x36W 2G11 2900 lm

 Classe I Energy saving Protection index IP20 CE marking Inflammable surfaces (F)

T038FB INCASSO WALLWASHER

1x36W 2G11 HO

230V 2900lm

 Classe I Energy saving Protection index IP20 CE marking Inflammable surfaces (F)

T038FB A RECESSED LIGHT WALLWASHER

1x36W 2G11 HO

230V 2900lm

 Classe I Energy saving Protection index IP20 CE marking Inflammable surfaces (F)

COLORS

BOX:
ral customization

ACCESSORIES / COMPONENTS

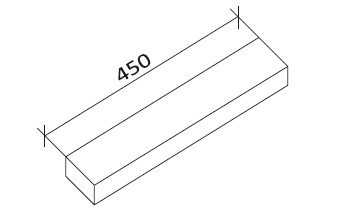

Polystyrene protection for buider’s yard

TC009
Polystyrene protection for buider’s yard
dimmable kit

TE025
dimmable kit 1x22W (see electrical connection)
dimmable kit

dimmable kit 1x36W (see electrical connection)

DOCUMENTATION

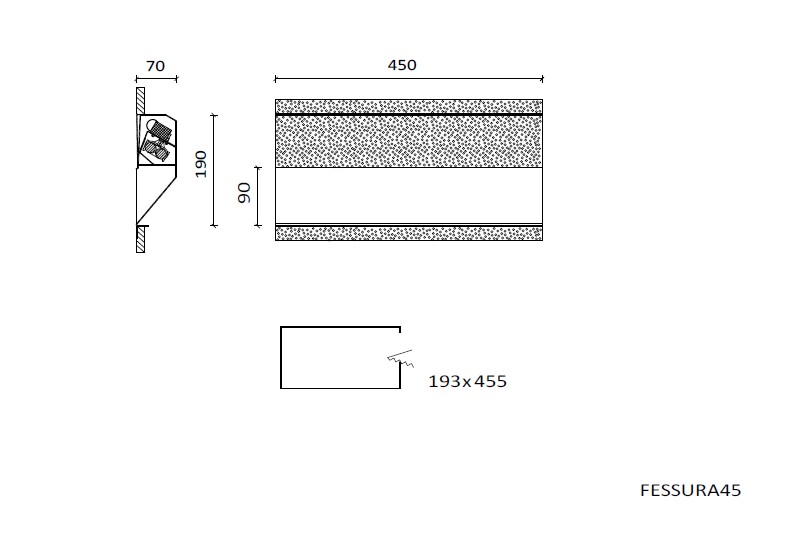

Technical Drawing

Assembly Instructions

Data Sheet

Electrical Assembly Instructions
