runner frameless

IP40IP43

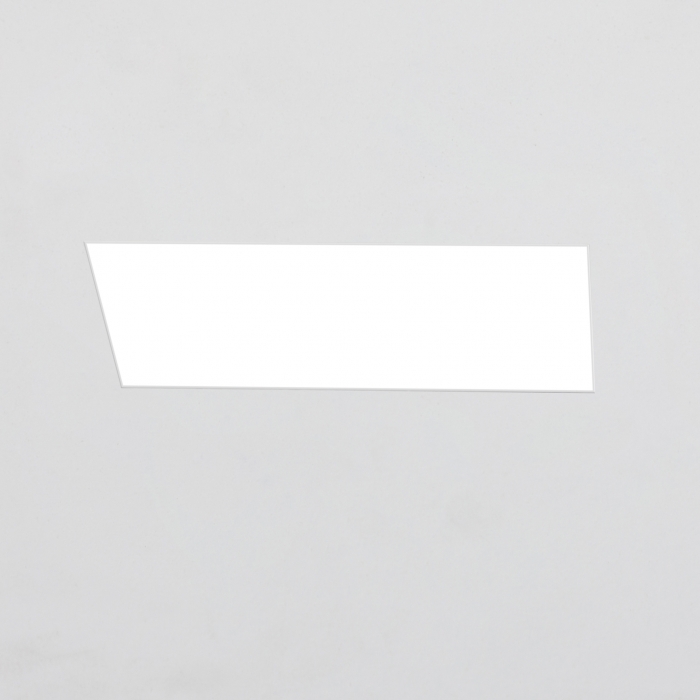

Runner frameless recessed light quadro fluo

Recessed light

Recessed light fitting for ceiling and wall without frame, for indoor use, with diffused light. Available in fluorescent light only, with a satin methacrylate screen. Plaster Kit included for a total recessed installation in the plasterboard.



TECHNICAL DATA

SYMBOLS

PHOTOMETRIC CURVE

T040 FE 01 A SQUARE RECESSED 2x18W Gx24q-2

For PLASTERBOARD installation



T046 FE 01 A SQUARE RECESSED 2x18W Gx24-2

For BRICK WALL installation

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

T040FA 01 A SQUARE RECESSED 2x26W Gx24q-3

For PLASTERBOARD installation



T046 FA 01 A SQUARE RECESSED 2x26W Gx24-3

For BRICK WALL installation

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

COLORS

BOX:
ral customization

NOTES

Power supply

Available in the version with EMERGENCY KIT

T040FA-T046FA: Product designed for the following lamps,

PHILIPS MASTER PL-T 4P 26W/830

OSRAM DULUX T/E CONSTANT 26W/830

ACCESSORIES / COMPONENTS
Plasterkit frame for plasterboard and brik wall included

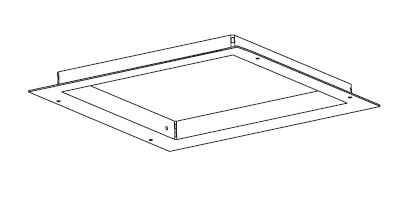

Plasterkit frame for plasterboard included
emergency kit

emergency kit (see electrical connection)
dimmable kit

dimmable kit (see electrical connection)

DOCUMENTATION

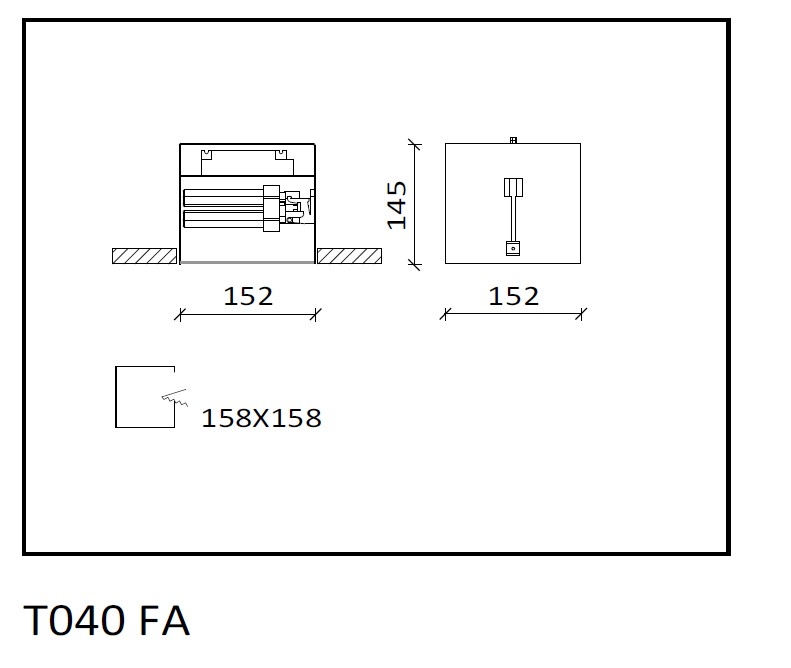

Technical Drawing

Assembly Instructions

Data Sheet

Electrical Assembly Instructions
