runner frameless

IP40IP43

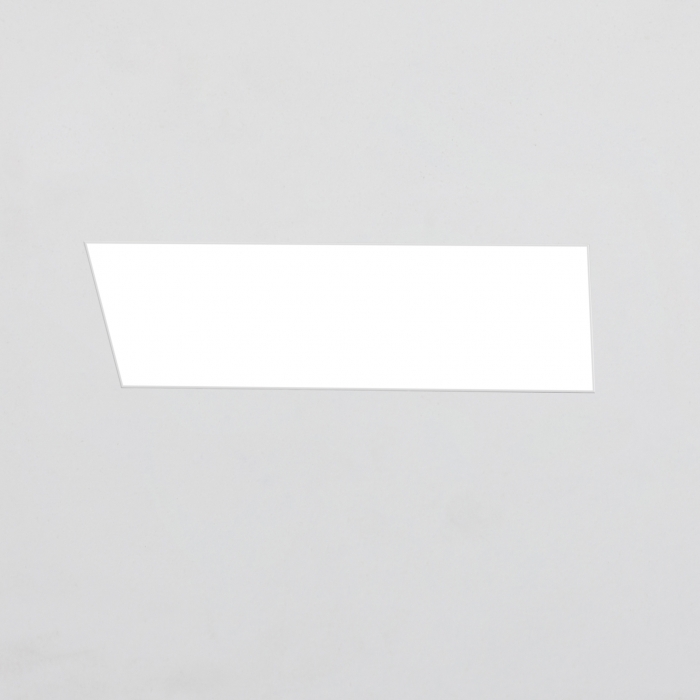

Runner frameless recessed light long fluo

Recessed light

Recessed light fitting for ceiling and wall without frame, for indoor use, with diffused light. Available in fluorescent light only, with a satin methacrylate screen. Plaster Kit included for a total recessed installation in the plasterboard and brick wall.



TECHNICAL DATA

SYMBOLS

PHOTOMETRIC CURVE

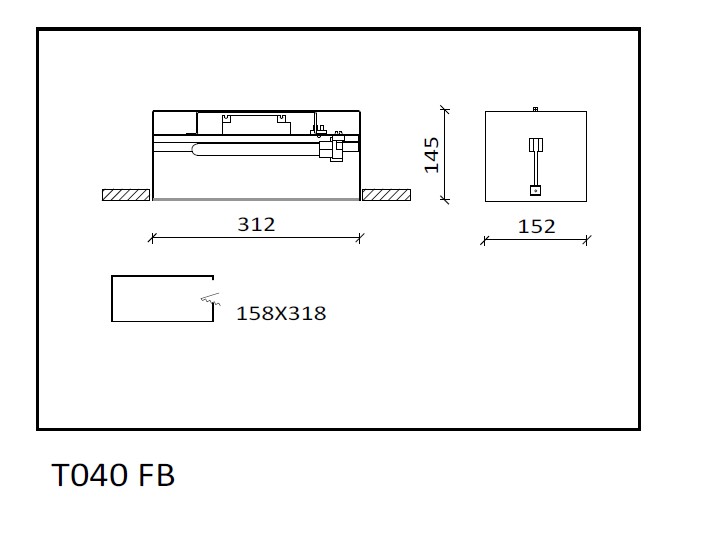

T040FB 01 A LONG RECESSED 2x18W 2G11

For PLASTERBOARD installation

T046FB 01 A LONG RECESSED 2x18W 2G11

For BRICKWALL installation


 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

COLORS

BOX:
ral customization

NOTES

Power supply.

Available in the version with EMERGENCY KIT.

Installation on brickwall possible with proper kit available on specific request.

ACCESSORIES / COMPONENTS

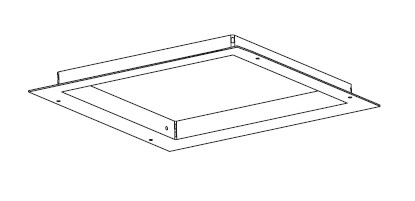

Plasterkit frame for plasterboard included

Plasterkit frame for plasterboard included
emergency kit

emergency kit (see electrical connection)
dimmable kit

dimmable kit (see electrical connection)

DOCUMENTATION

Technical Drawing

Assembly Instructions

Data Sheet

Electrical Assembly Instructions
