runner frameless

IP40IP43

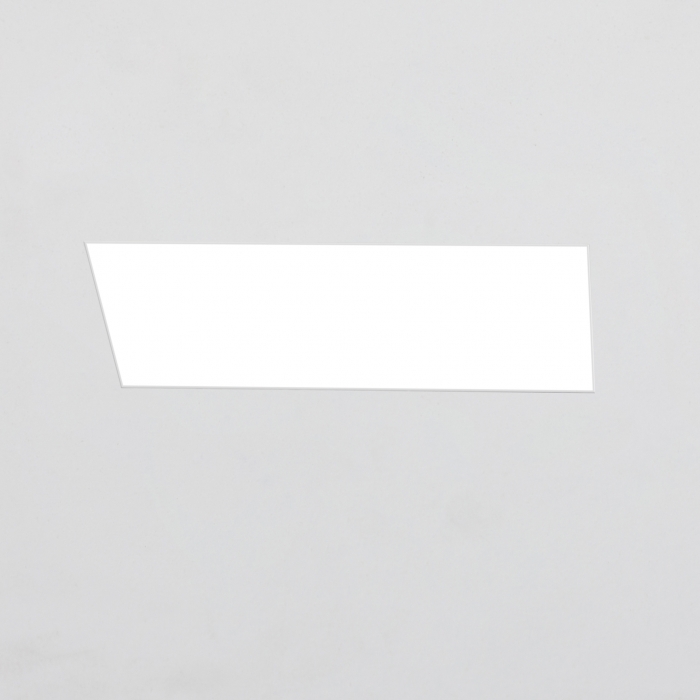

Runner frameless recessed light long g fluo

Recessed light

Recessed light fitting for ceiling and wall without frame, for indoor use, with diffused light. Available in fluorescent light only, with a satin methacrylate screen. Plaster Kit included for a total recessed installation in the plasterboard and brick wall.



TECHNICAL DATA

SYMBOLS

PHOTOMETRIC CURVE

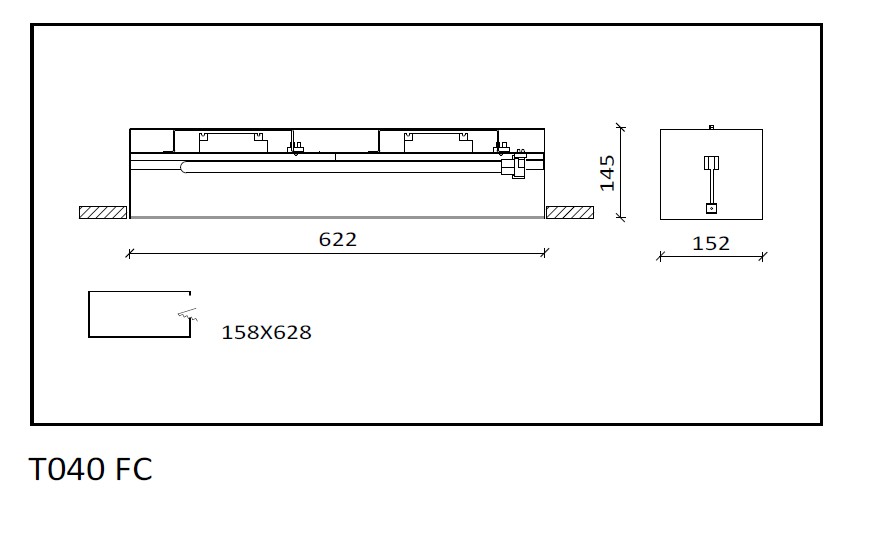

T040FC 01 A LONG G RECESSED 2x55W 2G11*

For PLASTERBOARD installation



T046FC 01 A LONG G RECESSED 2x55W 2G11*

For BRICKWALL installation

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

COLORS

BOX:
ral customization

NOTES

Power supply included



*Product available on request

Available in the version with EMERGENCY KIT

Installation on brick wall possible with proper kit available on specific request

ACCESSORIES / COMPONENTS

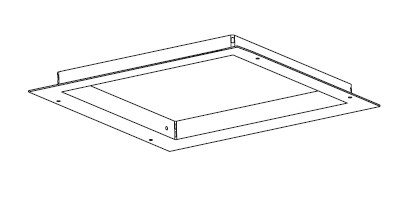

Plasterkit frame for plasterboard included

Plasterkit frame for plasterboard and brickwall included
emergency kit

emergency kit (see electrical connection)
dimmable kit

Kit dimmerabile (vedi dimensionamento elettrico)

DOCUMENTATION

Technical Drawing

Assembly Instructions

Data Sheet

Electrical Assembly Instructions
