runner frameless

IP40IP43

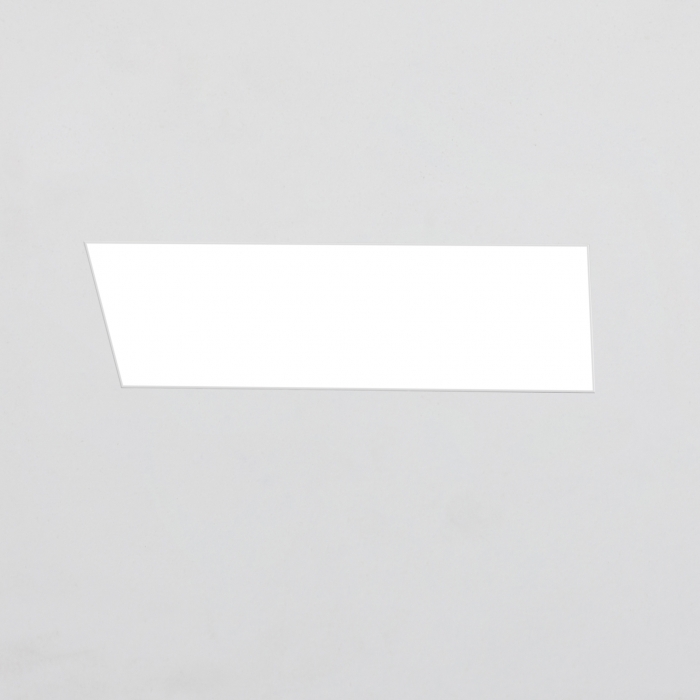

Runner frameless recessed light quadro g fluo

Recessed light

Recessed light fitting for ceiling and wall without frame, for indoor use, with diffused light. Available in fluorescent light only, with a satin methacrylate screen. Plaster Kit included for a total recessed installation in the plasterboard and brick wall.



TECHNICAL DATA

SYMBOLS

PHOTOMETRIC CURVE

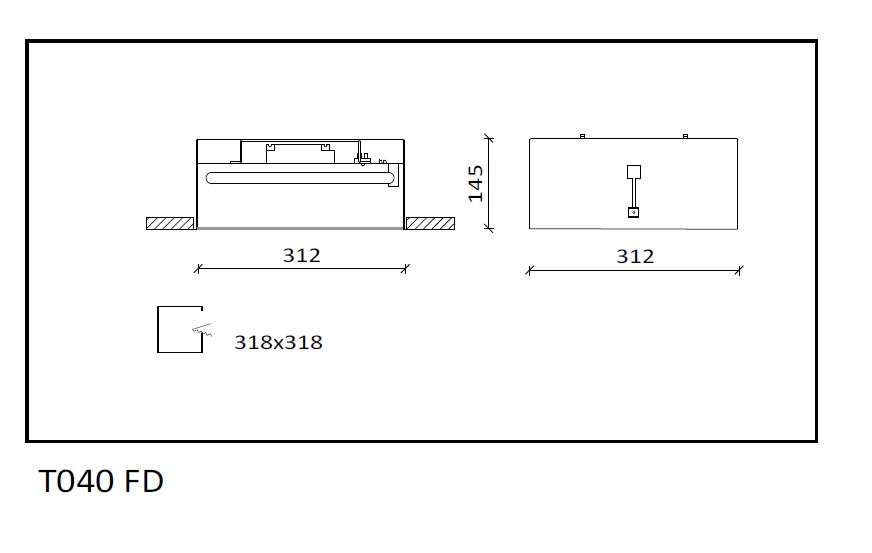

T040FD RECESSED G SQUARE 1x55W T5*

For PLASTERBOARD installation



T046FD RECESSED G SQUARE 1x55W T5*

For BRICK WALL installation

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

COLORS

BOX:
ral customization

NOTES

Product available on request.

Available in the version with EMERGENCY KIT.

Power supply.

Installation on brickwall possible with proper kit available on specific request.

ACCESSORIES / COMPONENTS

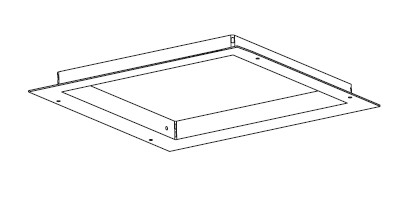

Plasterkit frame for plasterboard included

Plasterkit frame for plasterboard and brickwall included
emergency kit

emergency kit (see electrical connection)
dimmable kit

dimmable kit (see electrical connection)

DOCUMENTATION

Technical Drawing

Assembly Instructions

Data Sheet

Electrical Assembly Instructions
