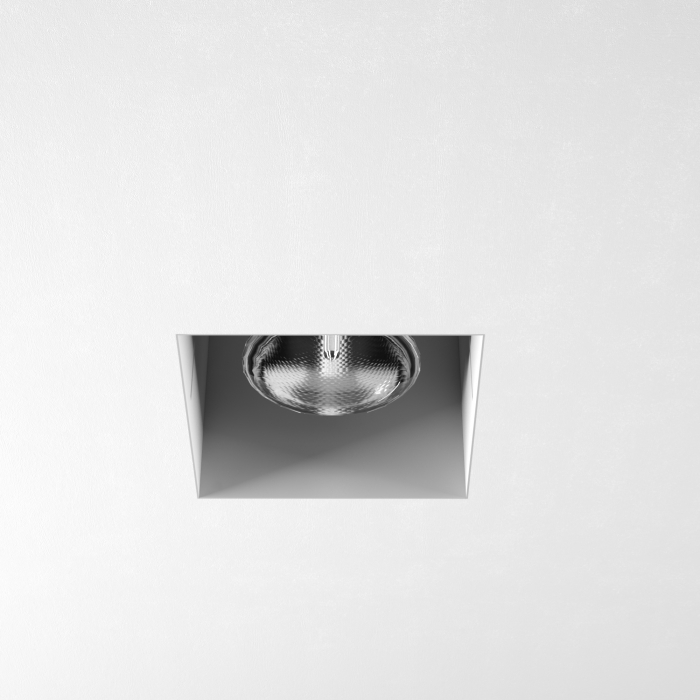

Diapar frameless

Diapar Alo frameless recessed light

Recessed light

Recessed light fi tti ng without frame with direct light for ceilings with E27 light bulbs. Available in metal painted entirely white, black, grey. The article is provided with a Plaster Kit enabbing a total recessed installation in the plasterboard or brick wall.



TECHNICAL DATA

SYMBOLS

PHOTOMETRIC CURVE

T033 AA RECESSED Max 1x100W E27 PAR 30 (for plastrboard)



T043 AA RECESSED Max 1x100W E27 PAR 30 (for brick wall)

 LED READY Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

COLORS

BOX:
ral customization

ACCESSORIES / COMPONENTS

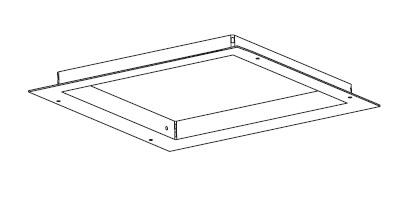

Plasterkit frame for plasterboard included

driver

Power supply 70W for metal halide (see electrical connection)

DOCUMENTATION

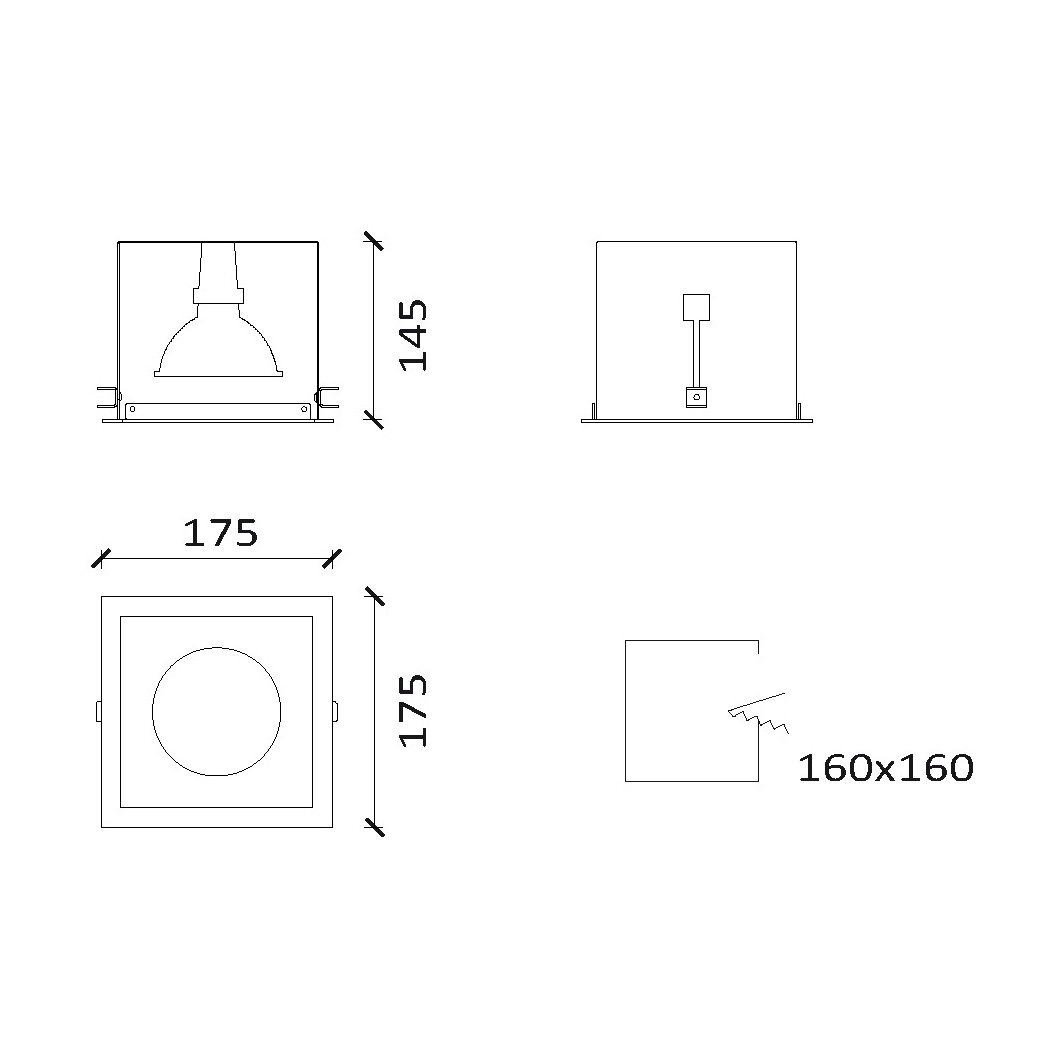

Technical Drawing

Assembly Instructions

Data Sheet

Electrical Assembly Instructions
