Diapson frameless

IP20359° revolving light

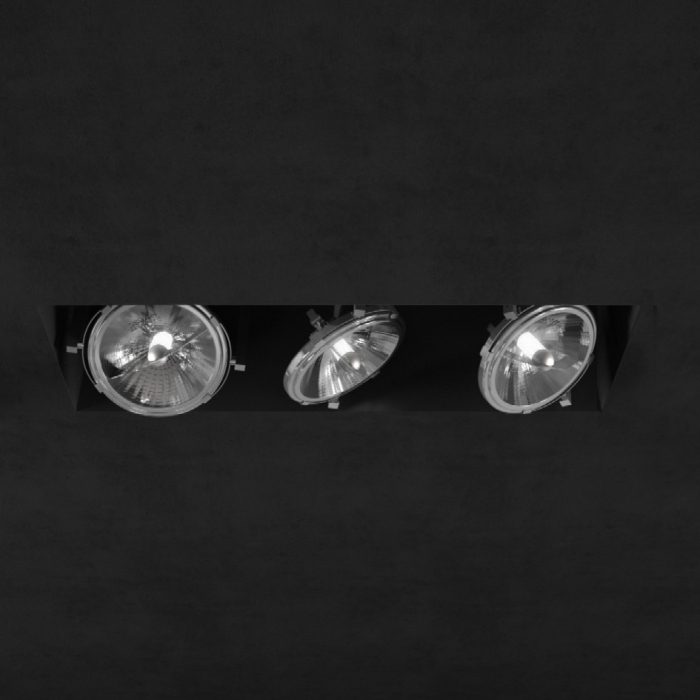

Diapson frameless Alo 3 lights

Recessed light

Architectural recessed fitting, with 1 to 4 lamps independently adjustable, wired for halogen QR111 o PRO LEDspot 111 (by Osram) in 12 volt or CDM-R111 metal halide. Available in metal painted white, black, grey.

Each article is equipped with a plaster Kit for a total recessed installation both on plasterboard and in brick wall.

Perfect customized solution for accents lighting in shops, showroom spaces thanks to the directional light beams. On request, it is available the Up & Down Kit for full extension and pointing of the optical unit.



TECHNICAL DATA

SYMBOLS

PHOTOMETRIC CURVE

T032 BE RECESSED Max 3x100W G53 QR111 (12V)

ALO (per plasterboard)

T044 BE RECESSED Max 3x100W G53 QR111 (12V)

ALO (per brick wall)

 Classe III Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

T032 HE RECESSED Max 3x70W GX8,5 230Vac CDM-R111

HIT (for plasterboard)

T044 HE RECESSED Max 3x70W GX8,5 230Vac CDM-R111

HIT (for brickwall)

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

COLORS

BOX:
ral customization

NOTES

Transformer not included

ACCESSORIES / COMPONENTS

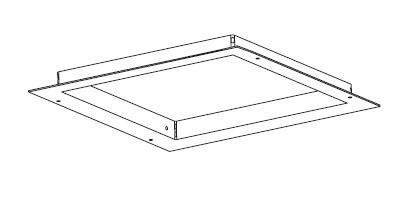

Plasterkit frame for plasterboard included

Plasterkit frame for plasterboard and brick wall included
Up & Down Kit for full extension and orientation of the optical unit

TA017 01 bianco / 02 grigio / 03 nero
Up & Down Kit for full extension and orientation of the optical unit
LED LAMP

SB00...
PRO LEDspot 111 by Osram

driver image

TE001
Power supply for metal halide 70W (see electrical connection)
driver

TE053
power supply 12Vdc

DOCUMENTATION

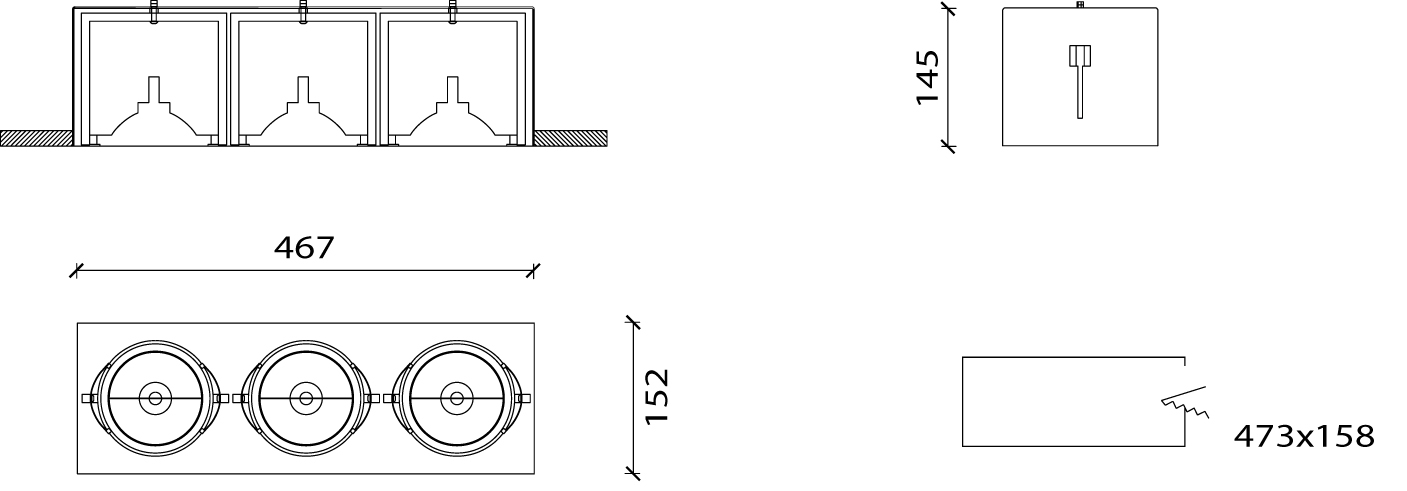

Technical Drawing

Assembly Instructions

Data Sheet

Electrical Assembly Instructions
