Stripe system ceiling T5 seamless
Fluorescent lamp

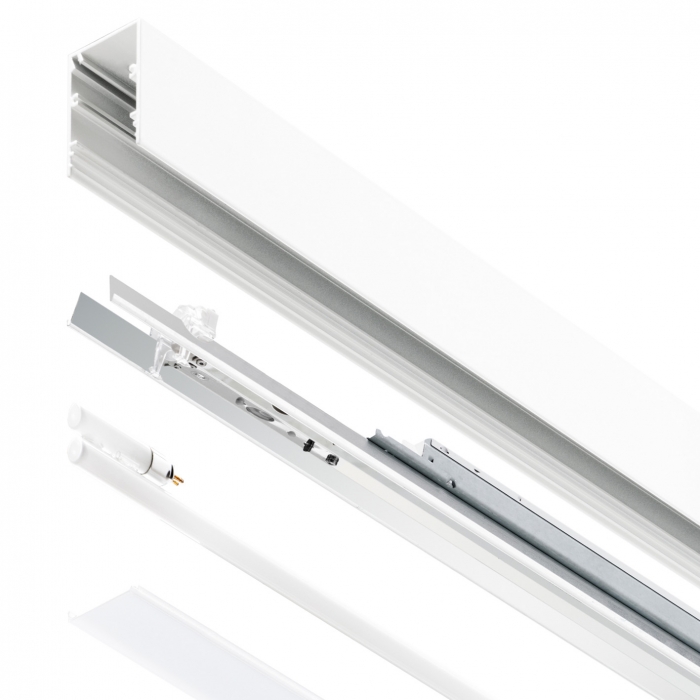

Ceiling mounting system made up of electrified modules, aluminium profiles designed for housing normal T5 Seamless, and PMMA diffuser or darklight screen. Available in the following anodized aluminium colours natural satin aluminium, shiny chrome and brushed titanium and in the following painted versions: shiny white and matt black. The lamps are available only in the HO version. The use of elements with the same length and power is recommended. A continuous fully-uniform luminous flux, without dark areas and shadows even at the module’s ends is guaranteed.
TECHNICAL DATA |
SYMBOLS |
PHOTOMETRIC CURVE |
TS512 FB CEILING 1x24W G5 T5-FQ 2000 lm L1 585 |
|
|
TS512 FD CEILING 1x39W G5 T5-FQ 3500 lm L1 885 |
|
|
TS512 FF CEILING 1x54W G5 T5-FQ 5000 lm L1 1185 |
|
COLORS |
|
BOX: |
|
ACCESSORIES / COMPONENTS |
||

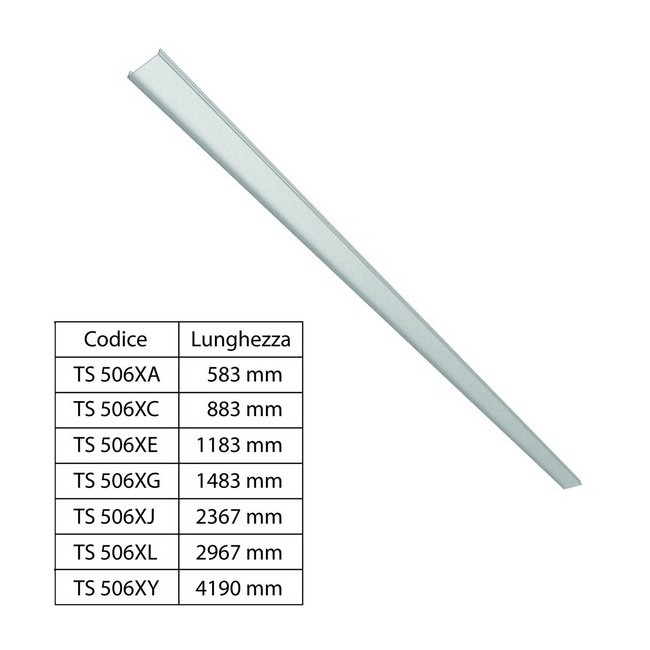

Diffuser |

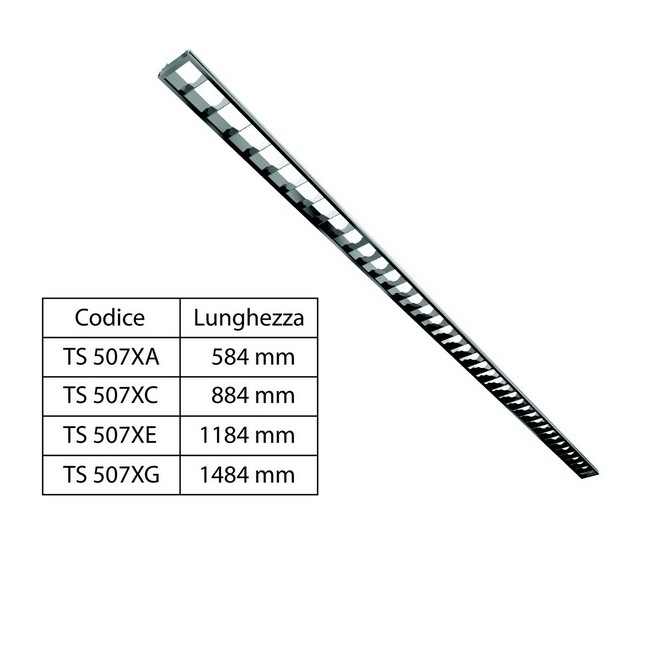

Darklight screen |

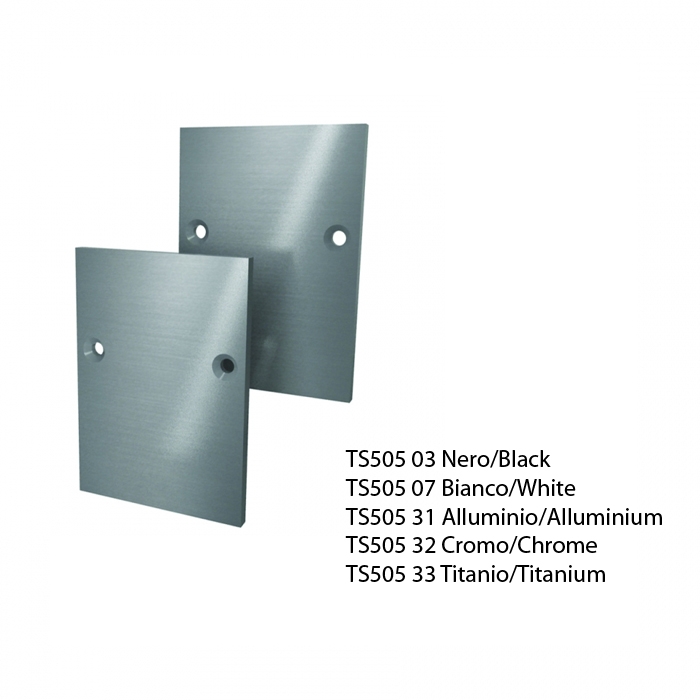

End caps kit without edges (2pcs.) |
TS 512 |
emergency kit (see electrical connection) |
dimmable kit (see electrical connection) |
DOCUMENTATION |
