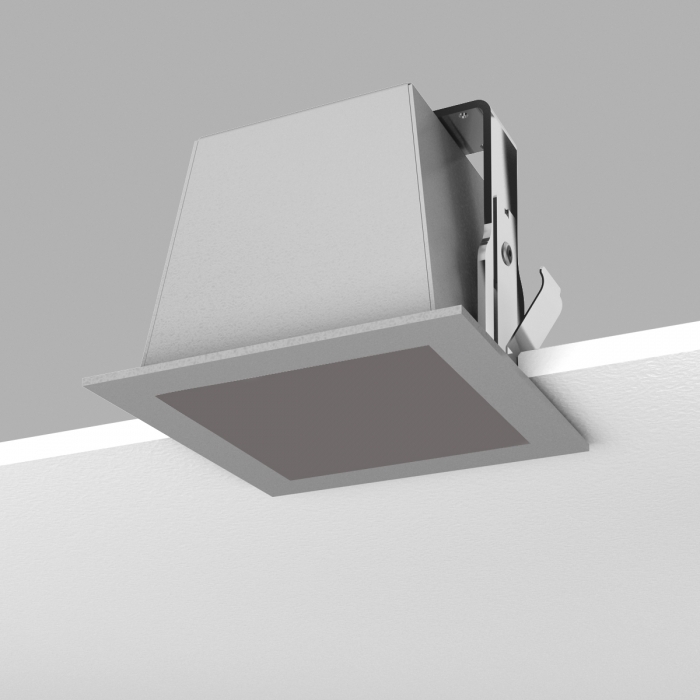

delta_foto_lente

Delta with optical lens

Recessed light LED lamp

Recessed spotlight with direct light, both for ceiling and wall, with a square section frame. Metal painted entirely white, black, grey and in polished or brushed chrome with grey interior. On request, available frame in gold or silver leaf. For plasterboard or brick wall with proper recessed box. The unit is equipped with a three CREE XT-E LED module which is available in two colour temperatures: 3000K and 4000K. Available with lens with optical beam angle 27°.



TECHNICAL DATA

SYMBOLS

PHOTOMETRIC CURVE

T005 LA K3 RECESSED LIGHT 90°

LED module 3 CREE XT-E 8W 700mA

with opical lens 27°, 3000K, 580lm



T005 LA K4  RECESSED LIGHT 90°

LED module 3 CREE XT-E 8W 700mA

with opical lens 27°, 4000K, 700lm

 LED INSIDE Classe III Protection index IP40 Protection index IP43 Led CE marking Inflammable surfaces (F)

COLORS

BOX:

NOTES

* IP40 for wall installation

*IP43 for ceiling installation

ACCESSORIES / COMPONENTS

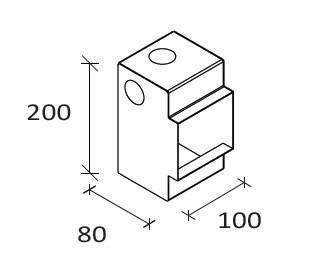

Recessed box

TC001
Recessed box

DOCUMENTATION

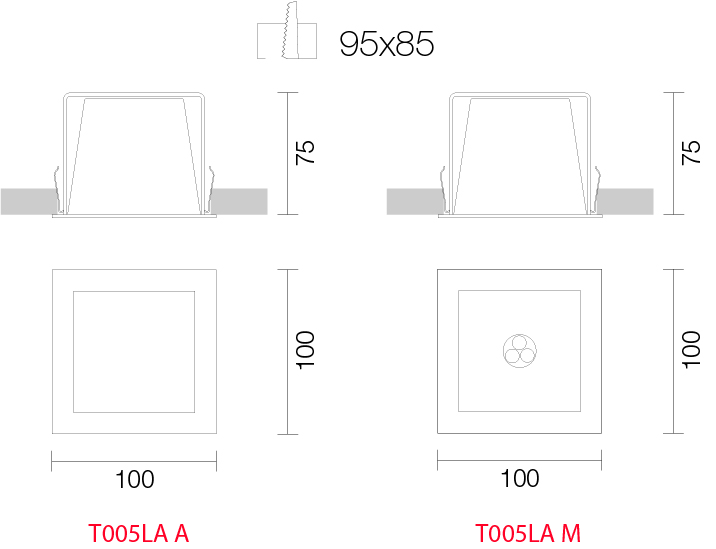

Technical Drawing

Assembly Instructions

Data Sheet

Electrical Assembly Instructions
