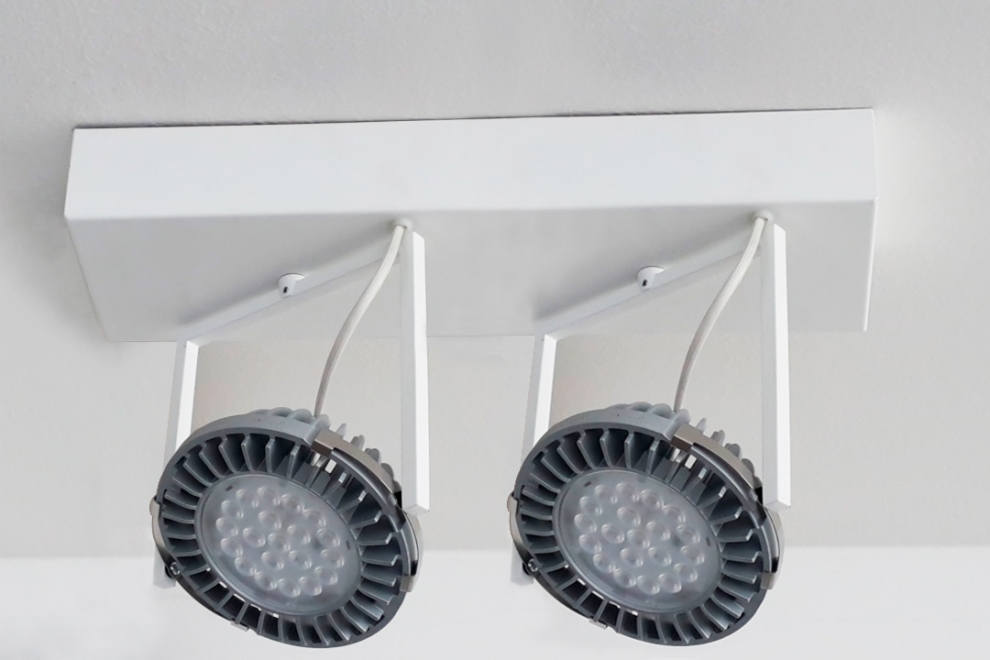

Diapson 2L Coinlight

Diapson LED COIN LIGHT 2 L wall/ceiling

LED wall/ceiling lamp

LED light fitting for indoor, with 1 up to 6 lights independently adjustable, in polished steel and chrome finish or matt white painted. The appliance is provided with LED COINLIGHT lamp (by Osram) and its proper power supply. This is an alternative solution to metal halide CDM-R111 version with the following advantages: energy saving, higher luminous flux, higher color rendering index, lower maintenance costs and immediate switch-on of the lamp. Perfect customized solution for accents lighting thanks to the directional light beams. Suitable for installation both on wall and ceiling.



TECHNICAL DATA

SYMBOLS

PHOTOMETRIC CURVE

T020 LC  (color) M K3 wall/ceiling,

LED LAMP COINLIGHT 2x22,5W (52W*),

Lens 24°, 3000K, 1740lm x 2 (7705 cd)

700mA power supply included



T020 LC (color) M K4 wall/ceiling,

LED LAMP COINLIGHT 2x22,5W (52W*),

Lens 24°, 4000K, 1850lm x 2 (8155 cd)

700mA power supply included



T020 LI (color) M K3 wall/ceiling,

LED LAMP COINLIGHT 2x33,8W (78W*),

Lens 24°, 3000K, 2550lm x 2 (11230 cd)

1050mA power supply included



T020 LI (color) M K4 wall/ceiling,

LED LAMP COINLIGHT 2x33,8W (78W*),

Lens 24°, 4000K, 2700lm x 2 (11885 cd)

1050mA power supply included

 LED INSIDE Classe I Energy saving Protection index IP20 Protection index IP23 Led CE marking Inflammable surfaces (F)

T020 LC (color) W K3 wall/ceiling,

LED LAMP COINLIGHT 2x22,5W (52W*),

Lens 40°, 3000K, 1740lm x 2 (3570 cd)

700mA power supply included



T020 LC (color) W K4 wall/ceiling,

LED LAMP COINLIGHT 2x22,5W (52W*),

Lens 40°, 4000K, 1850lm x 2 (3780 cd)

700mA power supply included



T020 LI (color) W K3 wall/ceiling,

LED LAMP COINLIGHT 2x33,8W (78W*),

Lens 40°, 3000K, 2550lm x 2 (5200 cd)

1050mA power supply included



T020 LI (color) W K4 wall/ceiling,

LED LAMP COINLIGHT 2x33,8W (78W*),

Lens 40°, 4000K, 2700lm x 2 (5505 cd)

1050mA power supply included

 LED INSIDE Classe I Energy saving Protection index IP20 Protection index IP23 Led CE marking Inflammable surfaces (F)

COLORS

BOX:

NOTES

* Total absorded power by the lighting fixture

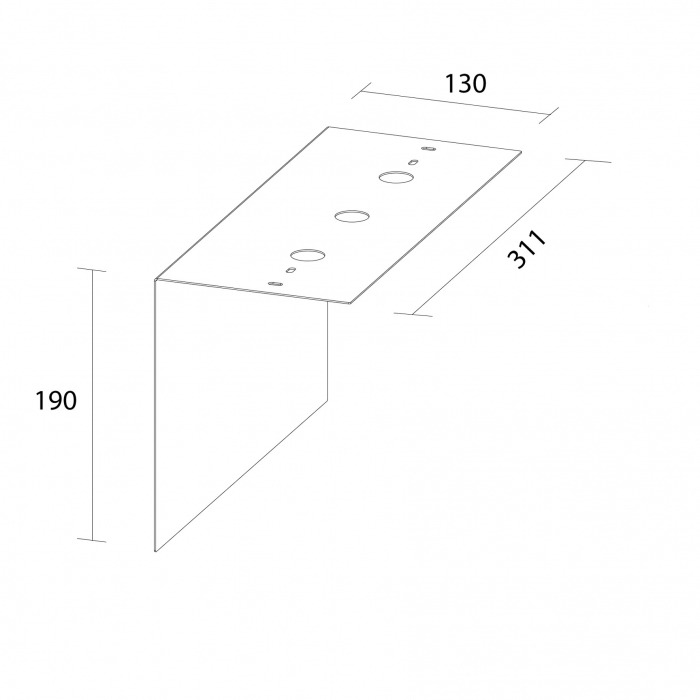

ACCESSORIES / COMPONENTS
Diapson 2 L COINLIGHT wall/ceiling

TA02601
Diapson COINLIGHT 2 L wall/ceiling

DOCUMENTATION

Technical Drawing

Assembly Instructions

Data Sheet
