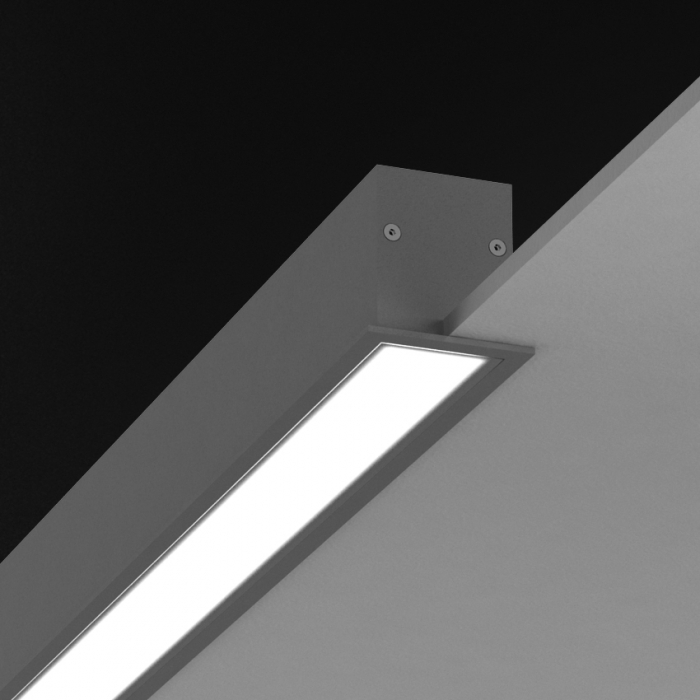

Stripe GO with edges LED

LED lamp

Recessed lamp with edges made up of electrified single, aluminium profiles designed for housing one or two IP20 led strips with high luminous flux 1560 lm/m (19,2 W/m), 2,5 cm pitch, and complete with end caps and satin PMMA diffuser.

Available in the following anodized aluminium colours natural satin aluminium, shiny chrome and brushed titanium and in the following painted versions: shiny white and matt black. Available in three white colour temperatures K3, K4, K6 (warm 3200K, neutral 4300K, cold 6000K).



TECHNICAL DATA

SYMBOLS

PHOTOMETRIC CURVE

T551 LA A K3 RECESSED L:591

1 STRIP LED HI-POWER  P.2,5cm

902lm 3200K 12W 24Vdc



T551 LA A K4 RECESSED  L:591

1 STRIP LED HI-POWER  P.2,5cm

912lm 4300K 12W 24Vdc



T551 LA A K6 RECESSED L:591

1 STRIP LED HI-POWER  P.2,5cm

960lm 6000K 12W 24Vdc

 LED INSIDE Classe III Energy saving Protection index IP43 Led CE marking Inflammable surfaces (F)

T552 LA A K3 RECESSED L:591

2 STRIP LED HI-POWER  P.2,5cm

1804lm 3200K 24W 24Vdc



T552 LA A K4 RECESSED L:591

2 STRIP LED HI-POWER  P.2,5cm

1824lm 4300K 24W 24Vdc



T552 LA A K6 RECESSED L:591

2 STRIP LED HI-POWER  P.2,5cm

1920lm 6000K 24W 24Vdc

 LED INSIDE Classe III Energy saving Protection index IP43 Led CE marking Inflammable surfaces (F)

T551 LC A K3 RECESSED L:891

1 STRIP LED HI-POWER  P.2,5cm

1354lm 3200K 17,5W 24Vdc



T551 LC A K4 RECESSED L:891

1 STRIP LED HI-POWER  P.2,5cm

1368lm 4300K 17,5W 24Vdc



T551 LC A K6 RECESSED  L:891

1 STRIP LED HI-POWER  P.2,5cm

1440lm 6000K 17,5W 24Vdc

 LED INSIDE Classe III Energy saving Protection index IP43 Led CE marking Inflammable surfaces (F)

T552 LC A K3 RECESSED L:891

2 STRIP LED HI-POWER  P.2,5cm

2708lm 3200K 35W 24Vdc



T552 LC A K4 RECESSED L:891

2 STRIP LED HI-POWER  P.2,5cm

2736lm 4300K 35W 24Vdc



T552 LC A K6 RECESSED L:891

2 STRIP LED HI-POWER  P.2,5cm

2880lm 6000K 35W 24Vdc

 LED INSIDE Classe III Energy saving Protection index IP65 Led CE marking Inflammable surfaces (F)

T551 LE A K3 RECESSED L:1191

1 STRIP LED HI-POWER  P.2,5cm

1805lm 3200K 23,5W 24Vdc



T551 LE A K4 RECESSED L:1191

1 STRIP LED HI-POWER  P.2,5cm

1824lm 4300K 23,5W 24Vdc



T551 LE A K6 RECESSED L:1191

1 STRIP LED HI-POWER  P.2,5cm

1920lm 6000K 23,5W 24Vdc

 LED INSIDE Classe III Energy saving Protection index IP43 Led CE marking Inflammable surfaces (F)

T552 LE A K3 RECESSED L:1191

2 STRIP LED HI-POWER  P.2,5cm

3610lm 3200K 47W 24Vdc



T552 LE A K4 RECESSED L:1191

2 STRIP LED HI-POWER  P.2,5cm

3648lm 4300K 47W 24Vdc



T552 LE A K6 RECESSED L:1191

2 STRIP LED HI-POWER  P.2,5cm

3840lm 6000K 47W 24Vdc

 LED INSIDE Classe III Energy saving Protection index IP43 Led CE marking Inflammable surfaces (F)

T551 LG A K3 RECESSED L:1491

1 STRIP LED HI-POWER  P.2,5cm

2256lm 3200K 29W 24Vdc



T551 LG A K4 RECESSED  L:1491

1 STRIP LED HI-POWER  P.2,5cm

2280lm 4300K 29W 24Vdc



T551 LG A K6 RECESSED L:1491

1 STRIP LED HI-POWER  P.2,5cm

2400lm 6000K 29W 24Vdc

 LED INSIDE Classe III Energy saving Protection index IP43 Led CE marking Inflammable surfaces (F)

T552 LG A K3 RECESSED L:1491

2 STRIP LED HI-POWER  P.2,5cm

4512lm 3200K 58W 24Vdc



T552 LG A K4 RECESSED L:1491

2 STRIP LED HI-POWER  P.2,5cm

4560lm 4300K 58W 24Vdc



T552 LG A K6 RECESSED L:1491

2 STRIP LED HI-POWER  P.2,5cm

4800lm 6000K 58W 24Vdc

 LED INSIDE Classe III Energy saving Protection index IP43 Led CE marking Inflammable surfaces (F)

T551 LJ A K3 RECESSED L:2376

1 STRIP LED HI-POWER  P.2,5cm

3610lm 3200K 46,5W 24Vdc



T551 LJ A K4 RECESSED L:2376

1 STRIP LED HI-POWER  P.2,5cm

3648lm 4300K 46,5W 24Vdc



T551 LJ A K6 RECESSED L:2376

1 STRIP LED HI-POWER  P.2,5cm

3840lm 6000K 46,5W 24Vdc

 LED INSIDE Classe III Energy saving Protection index IP43 Led CE marking Inflammable surfaces (F)

T552 LJ A K3 INCASSO L:2376

2 STRIP LED HI-POWER  P.2,5cm

7220lm 3200K 93W 24Vdc



T552 LJ A K4 INCASSO L:2376

2 STRIP LED HI-POWER  P.2,5cm

7296lm 4300K 93W 24Vdc



T552 LJ A K6 INCASSO L:2376

2 STRIP LED HI-POWER  P.2,5cm

7680lm 6000K 93W 24Vdc

 LED INSIDE Classe III Energy saving Protection index IP43 Led CE marking Inflammable surfaces (F)
LED INSIDE Classe III Energy saving Protection index IP43 Led CE marking Inflammable surfaces (F)

T552 LL A K3 RECESSED L:2976

2 STRIP LED HI-POWER  P.2,5cm

9024lm 3200K 116W 24Vdc



T552 LL A K4 RECESSED L:2976

2 STRIP LED HI-POWER  P.2,5cm

9120lm 4300K 116W 24Vdc



T552 LL A K6 RECESSED L:2976

2 STRIP LED HI-POWER  P.2,5cm

9600lm 6000K 116W 24Vdc

 LED INSIDE Classe III Energy saving Protection index IP43 Led CE marking Inflammable surfaces (F)

COLORS

BOX:

ACCESSORIES / COMPONENTS
driver

Driver (see datasheet)
dimmer

dimmable kit (see electrical connection)

DOCUMENTATION

Technical Drawing

Assembly Instructions

Data Sheet

Electrical Assembly Instructions
