Stripe suspension lamp

T512Up-down lightHigh outputRotation 180°

Stripe GO suspension Bi-Emission T5

Suspension lamp

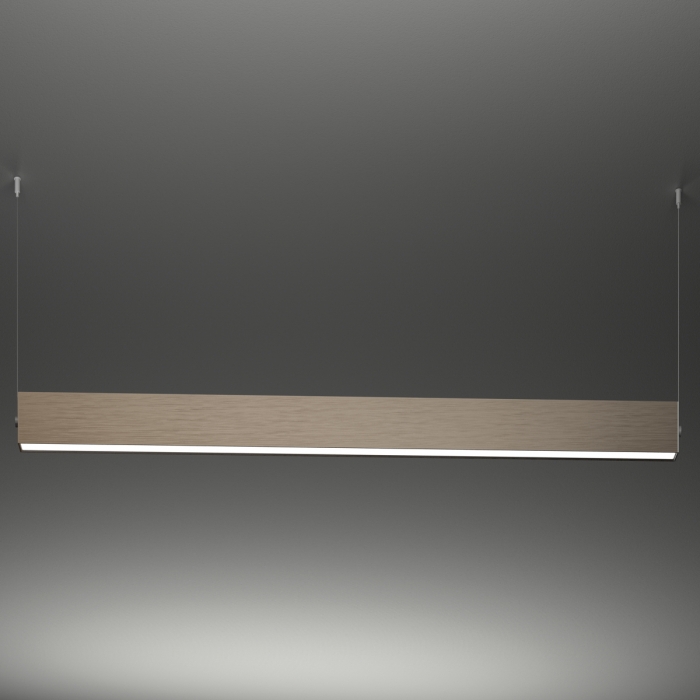

Double-emission suspension for direct and indirect light effect. Made up of coupled electrified elements, aluminium profiles designed for housing two normal T5 lamps, and complete with end caps and PMMA diffusers or darklight screen. Elements up to 1500mm are equipped with a system for rotation at 180°.Available in the following anodized aluminium colours natural satin aluminium, shiny chrome and brushed titanium and in the following painted versions: shiny white and matt black. The T5 lamps are available in two versions:

-      HE to maximize the luminous efficiency and get a constant luminance even by different elements with several lengths and powers.

-      HO to obtain the maximum luminous flux.  The use of HO lamps is advised for installation of several elements with the same power.



TECHNICAL DATA

SYMBOLS

PHOTOMETRIC CURVE

T512 FC A (diffuser+diffuser) SUSPENSION 1x21W G5 T5-HE L1 891

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

T512 FC B (darklight+diffuser) SUSPENSION 1x21W G5 T5-HE L1 891

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

T512 FD A (diffuser+diffuser) SUSPENSION 1x39W G5 T5-HE L1 891

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

T512 FD B (darklight+diffuser) SUSPENSION 1x39W G5 T5-HE L1 891

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

T512 FE A (diffuser+diffuser) SUSPENSION 1x28W G5 T5-HE L1 1191

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

T512 FE B (darklight+diffuser) SUSPENSION 1x28W G5 T5-HE L1 1191

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

T512 FF A (diffuser+diffuser) SUSPENSION 1x54W G5 T5-HO L1 1191

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

T512 FF B (darklight+diffuser) SUSPENSION 1x54W G5 T5-HO L1 1191

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

T512 FG A (diffuser+diffuser) SUSPENSION 1x35W G5 T5-HE L1 1491

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

T512 FG B (darklight+diffuser) SUSPENSION 1x35W G5 T5-HE L1 1491

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

T512 FH A (diffuser+diffuser) SUSPENSION 1x49W G5 T5-HO L1 1491

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

T512 FH B (darklight+diffuser) SUSPENSION 1x49W G5 T5-HO L11491

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

T512 FI A (diffuser+diffuser) SUSPENSION 1x80W G5 T5-HO L1 1491

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

T512 FI B (darklight+diffuser) SUSPENSION 1x80W G5 T5-HO L1 1491

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

T512 FJ A (diffuser+diffuser) SUSPENSION 4x28W G5 T5-HE L1 2376

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

T512 FJ B (diffuser+darklight) SUSPENSION 4x28W G5 T5-HE L1 2376

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

T512 FK A (diffuser+diffuser) SUSPENSION 4x54W G5 T5-HE L1 2376

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

T512 FK B (diffuser+darklight) SUSPENSION 4x54W G5 T5-HE L1 2376

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

T512 FL A (diffuser+diffuser) SUSPENSION 4x35W G5 T5-HE L1 3004

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

T512 FL B (diffuser+darklight) SUSPENSION 4x35W G5 T5-HE L1 3004

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

T512 FM A (diffuser+diffuser) SUSPENSION 4x49W G5 T5-HE L1 3004

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

T512 FM B (diffuser+darklight) SUSPENSION 4x49W G5 T5-HE L1 3004

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

T512 FN A (diffuser+diffuser) SUSPENSION 4x80W G5 T5-HE L1 3004

 Classe I Energy saving Protection index IP20 CE marking Inflammable surfaces (F)

T512 FN B (diffuser+darklight) SUSPENSION 4x80W G5 T5-HE L1 3004

 Classe I Energy saving Protection index IP23 CE marking Inflammable surfaces (F)

COLORS

BOX:
ral customization

ACCESSORIES / COMPONENTS
dimmer

emergency kit (see electrical connection) only 120-150 version
dimmer

dimmable kit (see electrical connection)

DOCUMENTATION

Technical Drawing

Assembly Instructions

Data Sheet

Electrical Assembly Instructions
