Stripe system ceiling

Stripe system ceiling light T5 normal

Fluorescent lamp

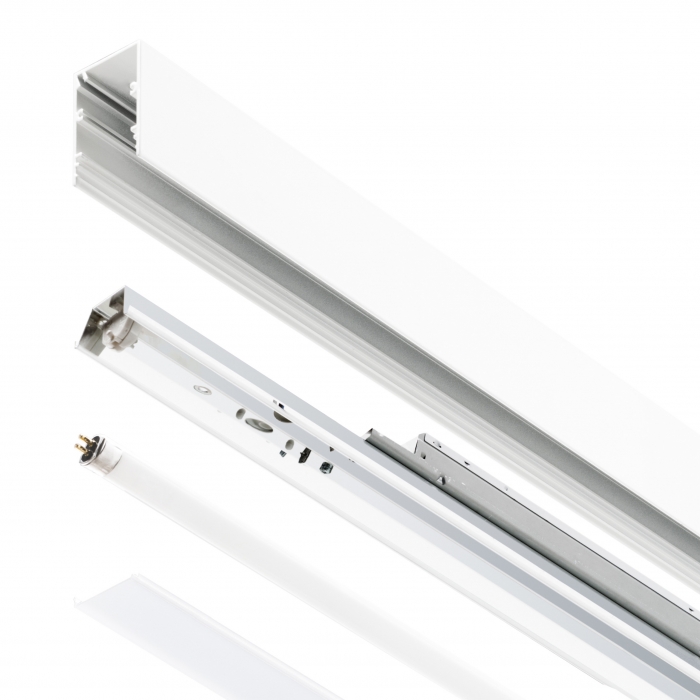

Ceiling mounting system made up of electrified modules, aluminium profiles designed for housing normal T5 lamps, and PMMA diffuser or darklight screen. Available in the following anodized aluminium colours natural satin aluminium, shiny chrome and brushed titanium and in the following painted versions: shiny white and matt black. The T5 lamps are available in two versions:

-      HE to maximize the luminous efficiency and get a constant luminance even by different elements with several lengths and powers.

-      HO to obtain the maximum luminous flux.  The use of HO lamps is advised for installation of several elements with the same power.



TECHNICAL DATA

SYMBOLS

PHOTOMETRIC CURVE

TS502 FA CEILING,

1x14W G5 230Vac T5-HE

1350lm (1,7 cd/cmq) L:585mm

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

TS502 FB CEILING,

1x24W G5 230Vac T5-HO

2000lm (2,5 cd/cmq) L:585mm

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

TS502 FC CEILING,

1x21W G5 230Vac T5-HE

2100lm (1,7 cd/cmq) L:885mm

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

TS502 FD CEILING,

1x39W G5 230Vac T5-HO

3500lm (2,8 cd/cmq) L:885mm

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

TS502 FE CEILING,

1x28W G5 230Vac T5-HE

2900lm (1,7 cd/cmq) L:1185mm

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

TS502 FF CEILING,

1x54W G5 230Vac T5-HO

5000lm (2,9 cd/cmq) L:1185mm

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

TS502 FG CEILING,

1x35W G5 230Vac T5-HE

3650lm (1,7 cd/cmq) L:1485mm

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

TS502 FH CEILING,

1x49W G5 230Vac T5-HO

4900lm (2,3 cd/cmq) L:1485mm

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

TS502 FI CEILING,

1x80W G5 230Vac T5-HO

7000lm (3,2 cd/cmq) L:1485mm

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

COLORS

BOX:
ral customization

ACCESSORIES / COMPONENTS

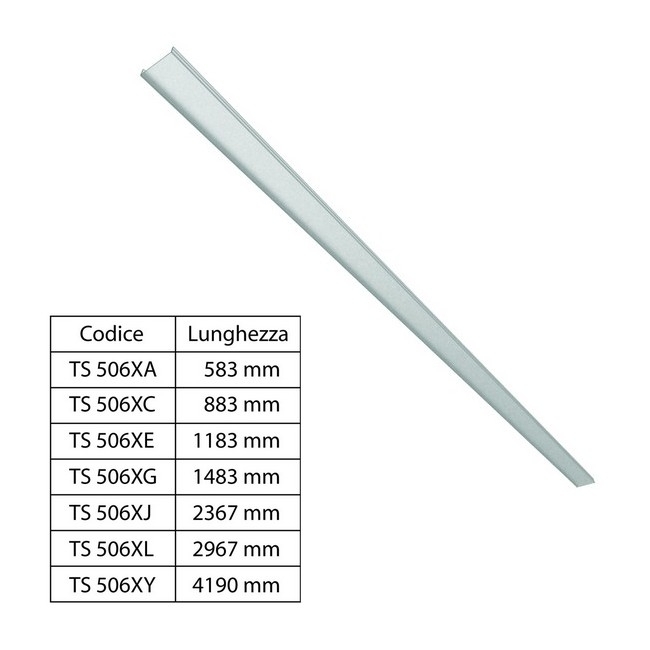

diffuser

Diffuser

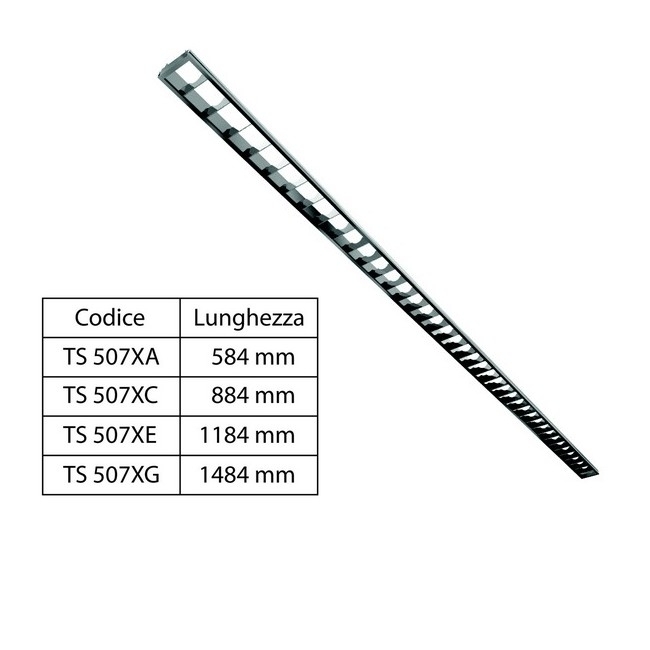

darklight

Darklight screen

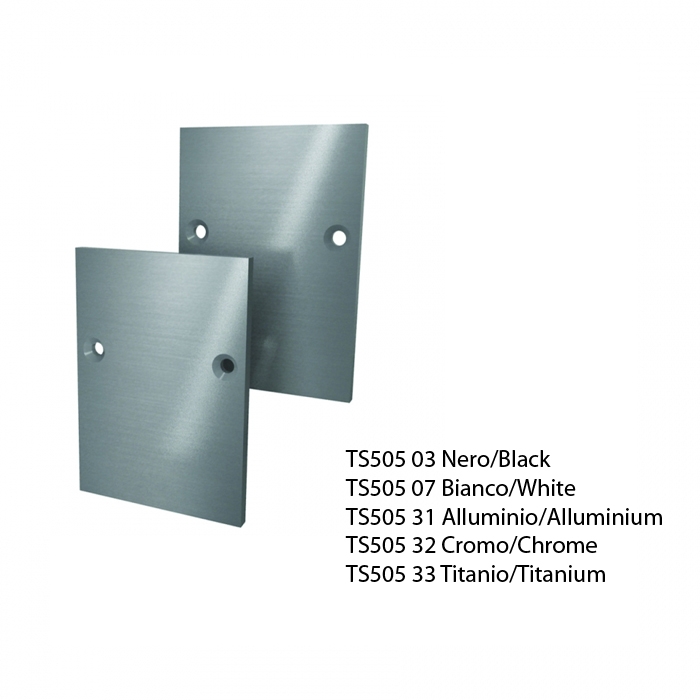

End caps kit without edges (2pcs)

TS 505
End caps kit without edges (2pcs.)

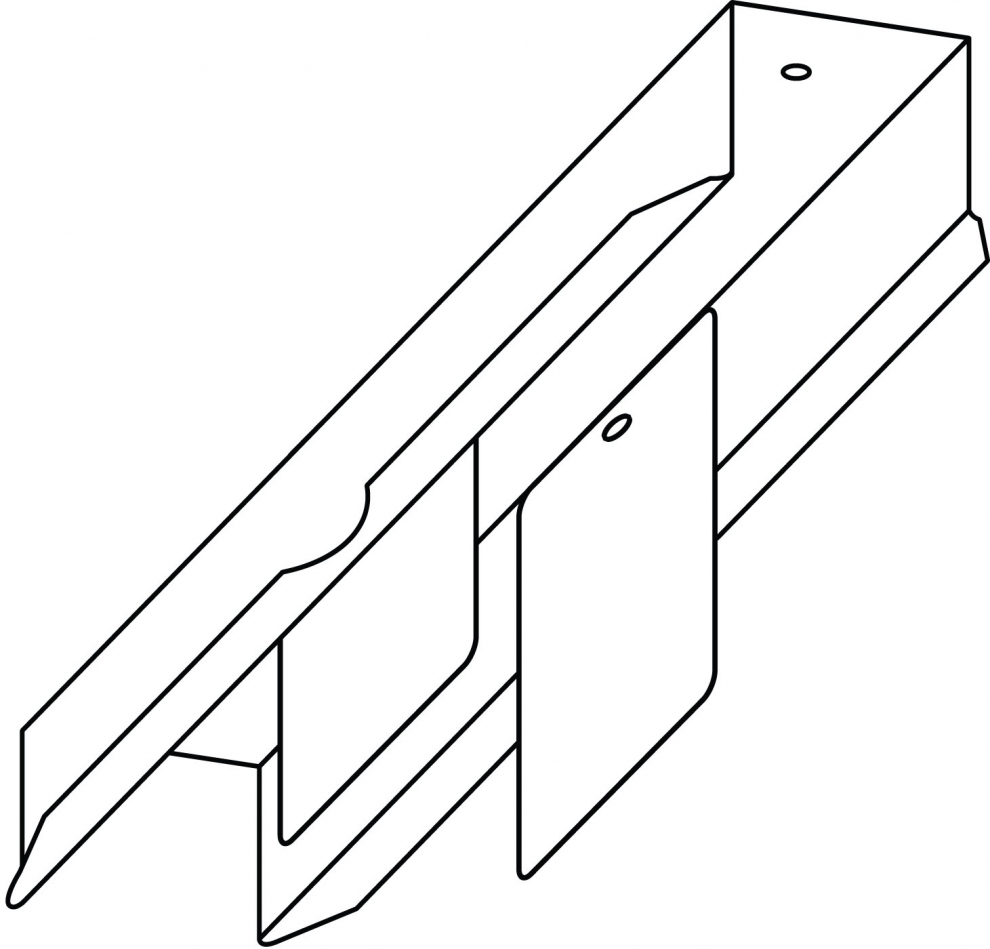

metal junction bar

TS 512
Metal junction bar for ceiling
emergency kit

emergency kit (see electrical connection)
kit dimmerabile

dimmable kit (see electrical connection)
