Riflesso Fluo

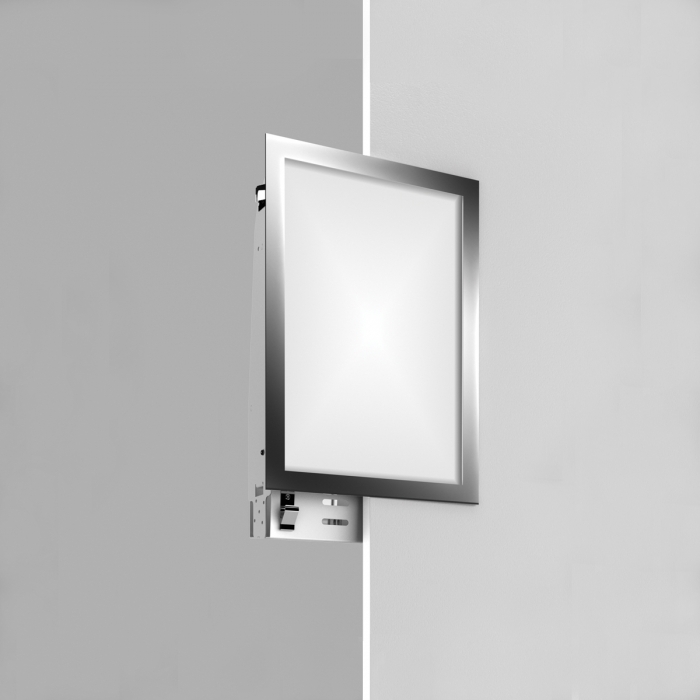

Riflesso fluo 29 recessed light

Recessed light

Recessed light fitting with the frame’s internal part painted exclusively in white and with a frame in white, black, grey and polished or brushed chrome. Available in two sizes, both supplied with a methacrylate screen diffusing only fluorescent light. For plasterboard or brick, with special recessed box.



TECHNICAL DATA

SYMBOLS

PHOTOMETRIC CURVE

T008 FA RECESSED 2x18W 2G11

 Classe I Energy saving Protection index IP40 CE marking Inflammable surfaces (F)

COLORS

BOX:

FRAME:

CUSTOMIZATION:
ral customization

NOTES

ACCESSORIES / COMPONENTS
Recessed box

TC004
Recessed box
emergency kit

TE015
emergency kit (see electrical connection)
dimmable kit

TE035
dimmable kit (see electrical connection)

DOCUMENTATION

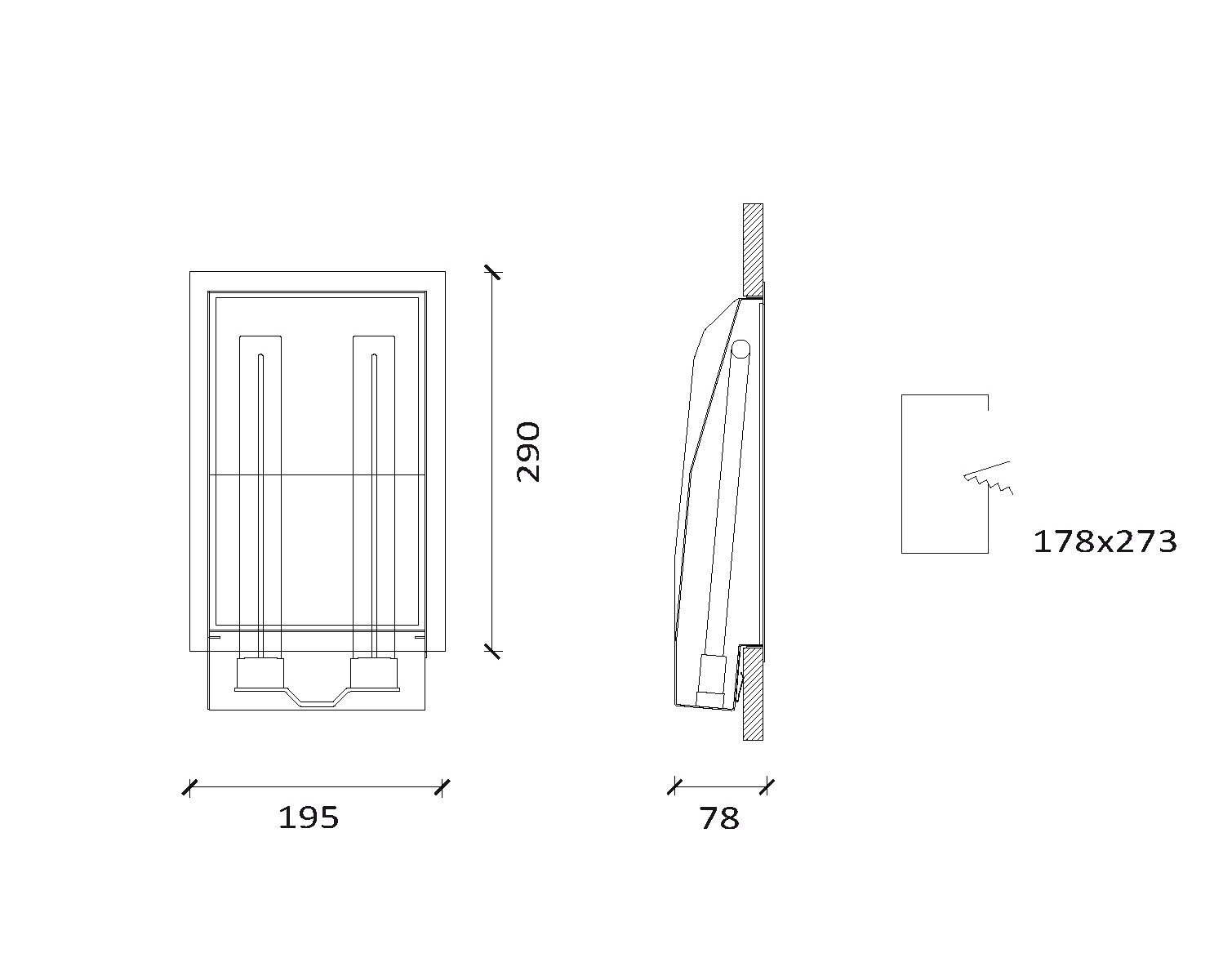

Technical Drawing

Assembly Instructions

Data Sheet

Electrical Assembly Instructions
